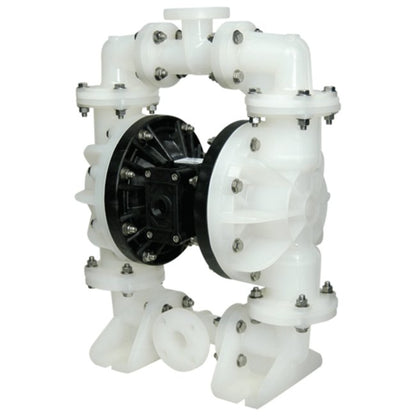

Sandpiper 1 1/2" S15 Poly Ball Valve Diaphragm Pump
Sandpiper 1 1/2" S15 Poly Ball Valve Diaphragm Pump
SKU:PRO-02c771
Sandpiper S15 Poly Ball Valve Pump - Top Discharge, 100 gpm, Polypropylene Construction, Ball Check Valve
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sandpiper 1 1/2" S15 Poly Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper 1 1/2" S15 Poly Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper 1 1/2" S15 Poly Ball Valve Diaphragm Pump is designed for intermittent, portable, and moderately abrasive fluid transfer applications. With a top discharge port, polypropylene construction, and ball check valve type, this pump is ideal for handling suspended solids up to 0.47 inches. Its durable design features PTFE-coated hardware, ensuring reliable performance and longevity. With a maximum flow rate of 100 gpm and compliance with industry standards, this pump is a versatile and efficient choice for various institutional and government procurement needs.
Product Specifications
Curves 0

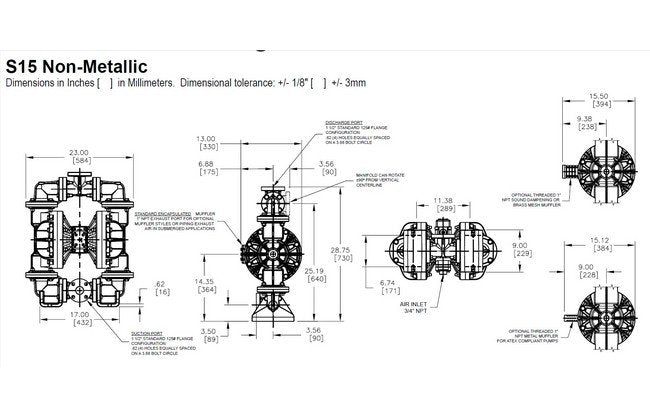

Dimensions 0
Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene with PTFE Coated Hardware
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3PBP1US000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg | 37.19 Kilogram
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
