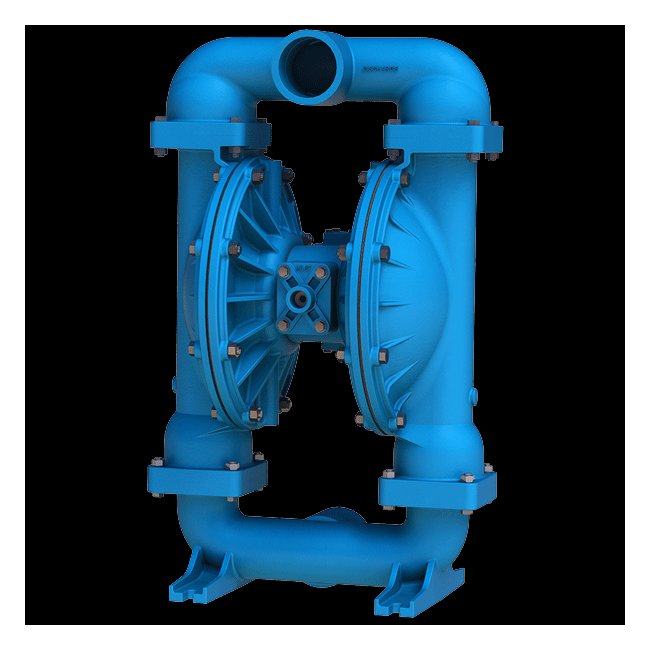

Sandpiper 3" NPT S30 Standard Duty Metallic Ball Valve Diaphragm Pump
Sandpiper 3" NPT S30 Standard Duty Metallic Ball Valve Diaphragm Pump
SKU:PRO-9b9244
Sandpiper 3" NPT S30 Standard Duty Metallic Ball Valve Pump with TPE/PTFE diaphragms for fluid transfer & batching.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Sandpiper 3" NPT S30 Standard Duty Metallic Ball Valve Diaphragm Pump
$2,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper 3" NPT S30 Standard Duty Metallic Ball Valve Diaphragm Pump
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper 3 Inch NPT S30 Standard Duty Metallic Ball Valve Diaphragm Pump, part of the S30 Evolution Metallic Ball Valve Diaphragm Pump line, is designed for fluid transfer and batching with exceptional performance in moderately abrasive fluids and suspended solids. Featuring TPE and PTFE options in diaphragms and check valves, this pump ensures reliable operation. With a 0.25 in solids handling capability, 0.94 gal displacement per stroke, and a maximum flow rate of 235 gpm, it is a robust choice for waste water applications. Accessories like the Wet End Kit and Air End Kit are available separately for enhanced functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code 2B350.i
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
PTFE - Neoprene/PTFE
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS30B1HGTANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
235 lbs | 107 kg
Specifications Wetted Moc
Alloy C
Category 6
Standard Duty Diaphragm Pumps
