Sandpiper S05 Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S05 Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-0d0608
Price: 599.99 USD
Availability: OutOfStock

SKU:PRO-0d0608

Reliable Sandpiper S05 Metallic Ball Valve Diaphragm Pump for standard duty applications. Max flow rate of 15 gpm. Ideal for waste water management.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

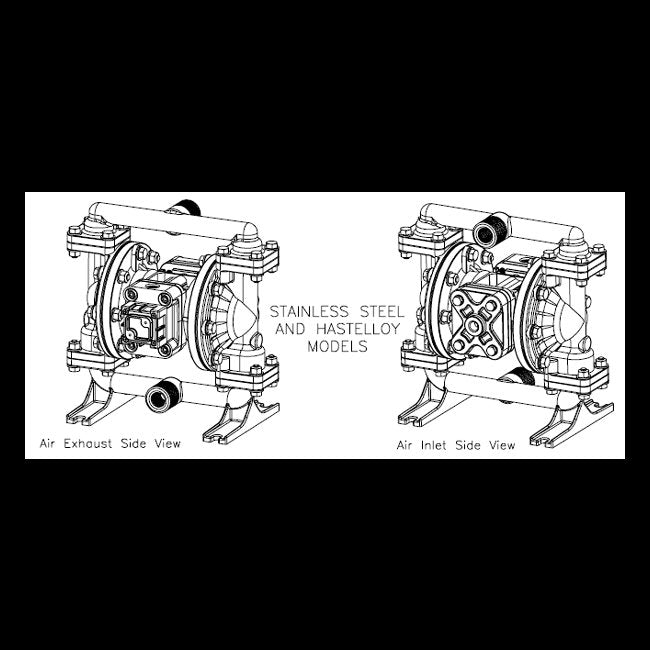

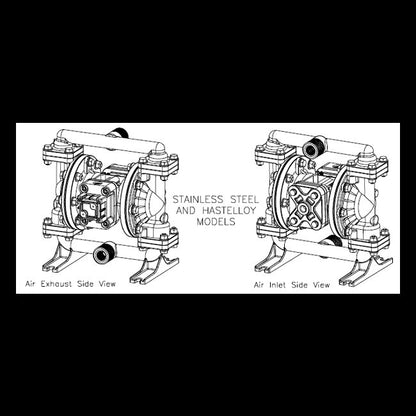

The Sandpiper S05 Metallic Ball Valve Diaphragm Pump is a top-performing air-powered double diaphragm pump designed for standard duty applications. With a durable design featuring Hastelloy wetted materials and Buna/Buna elastomers, this pump offers reliable performance. It boasts a max flow rate of 15 gpm, solid handling up to 0.125 inches, and a lightweight aluminum non-wetted material construction. Ideal for waste water management, it meets industry standards for efficiency and quality.

Product Specifications

Specifications Check Valve Seat

UHMW Polyethylene

Specifications Check Valve Type

Ball

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Buna/Buna

Specifications Intake Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Max Flow Rate

0 - 15 gpm | 0 - 56 lpm

Specifications Non Wetted Material

Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

23 lbs | 11 kg

Specifications Wetted Moc

Hastelloy

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S05 Metallic Ball Valve Diaphragm Pump
