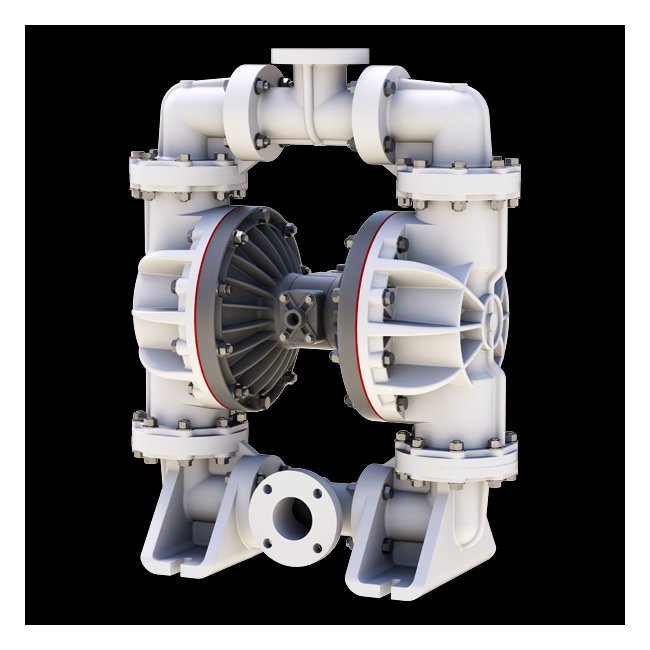

The Sandpiper S05 Metallic Ball Valve Diaphragm Pump sets the standard for reliable and efficient pumping in wastewater applications. This air-powered double diaphragm pump features a ball check valve design for enhanced performance. With a solid handling capacity of 0.125 inches, it delivers a displacement of 0.026 gallons per stroke, making it ideal for standard duty applications. Constructed with aluminum, Hastelloy, and stainless steel wetted materials, this pump ensures durability and corrosion resistance. Choose from various elastomer options for compatibility with different fluids. Trust the Sandpiper S05 for dependable pumping operations.
Product Specifications
Specifications Check Valve Seat
Aluminum | Cast Iron | Hastelloy | Stainless Steel
Specifications Check Valve Type
Ball
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Buna/Buna | EPDM/EPDM | Neoprene/Neoprene | PTFE - Santoprene/PTFE | Santoprene®/Santoprene® | UniRupp® PTFE/PTFE | Viton®/PTFE
Specifications Intake Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Max Flow Rate
0 - 15 gpm | 0 - 56 lpm
Specifications Non Wetted Material
Aluminum
Specifications Porting Position
Bottom Dual Porting (BSPT) (Alum Only) | Bottom Dual Porting (NPT) (Alum Only) | BSPT (Tapered) Threads | Dual Porting (BSPT) (Alum Only) | Dual Porting (NPT) (Alum Only) | Top Dual Porting (BSPT) (Alum Only) | Top Dual Porting (NPT) (Alum Only)
Specifications Pump Style
Standard
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Wetted Moc
Aluminum | Hastelloy | Stainless Steel
