Sandpiper S05 Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S05 Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-1a64e7
Price: 1299.99 USD
Availability: OutOfStock

SKU:PRO-1a64e7

Reliable Sandpiper S05 Diaphragm Pump for standard duty applications. Corrosion-resistant with 15 gpm max flow rate.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

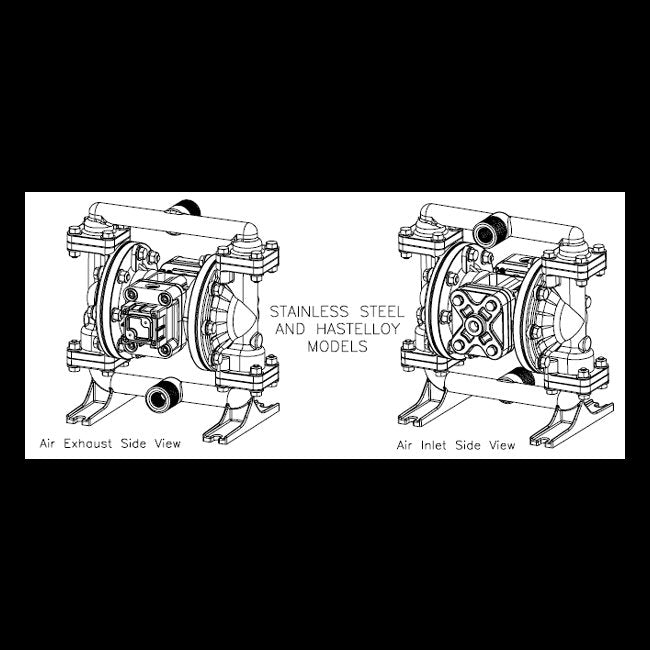

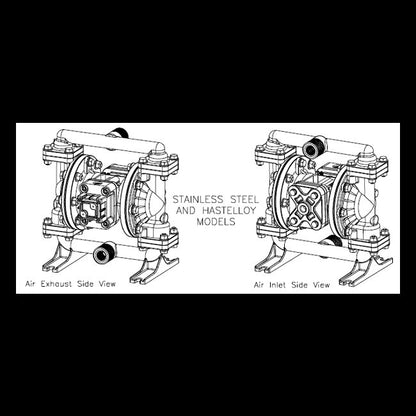

The Sandpiper S05 Metallic Ball Valve Diaphragm Pump is a top-performing air-powered double diaphragm pump designed for standard duty applications. With a Hastelloy wetted material of construction and PTFE elastomers, this pump ensures reliable and corrosion-resistant operation. It features a ball check valve type, 0.125" solids handling, and a max flow rate of 15 gpm, making it ideal for wastewater and utility environments. Compliant with federal procurement standards and industry certifications, the S05 pump is a dependable solution for water management needs.

Product Specifications

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

PTFE - Santoprene/PTFE

Specifications Intake Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Max Flow Rate

0 - 15 gpm | 0 - 56 lpm

Specifications Non Wetted Material

Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

23 lbs | 11 kg

Specifications Wetted Moc

Hastelloy

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S05 Metallic Ball Valve Diaphragm Pump
