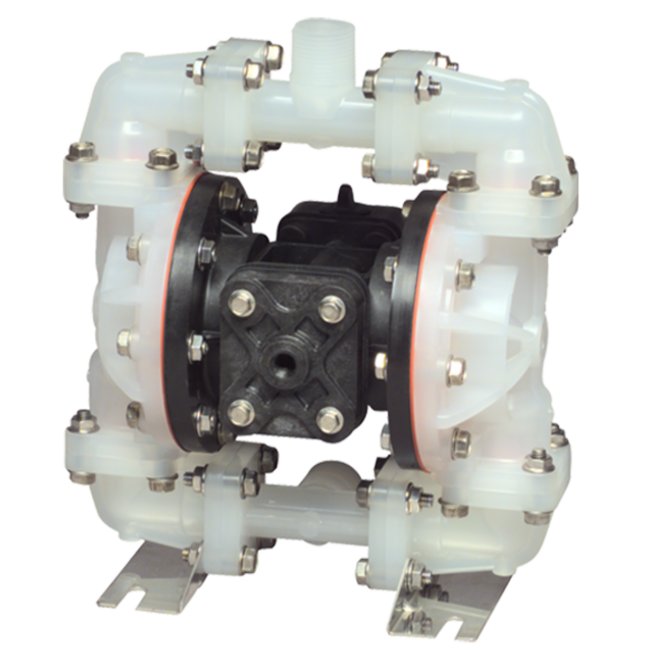

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-bec8a9
Price: 1299.99 USD
Availability: OutOfStock

SKU:PRO-bec8a9

Reliable and durable non-metallic diaphragm pump for corrosive fluids handling.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids with intermittent/on-demand requirements. Constructed with TPE and PTFE options in diaphragms and check valves, this pump is ideal for portable applications dealing with low abrasive fluids and suspended solids. With a non-metallic design, it offers exceptional resistance to corrosion, making it a reliable choice for various industrial settings.

Product Specifications

Curves 0

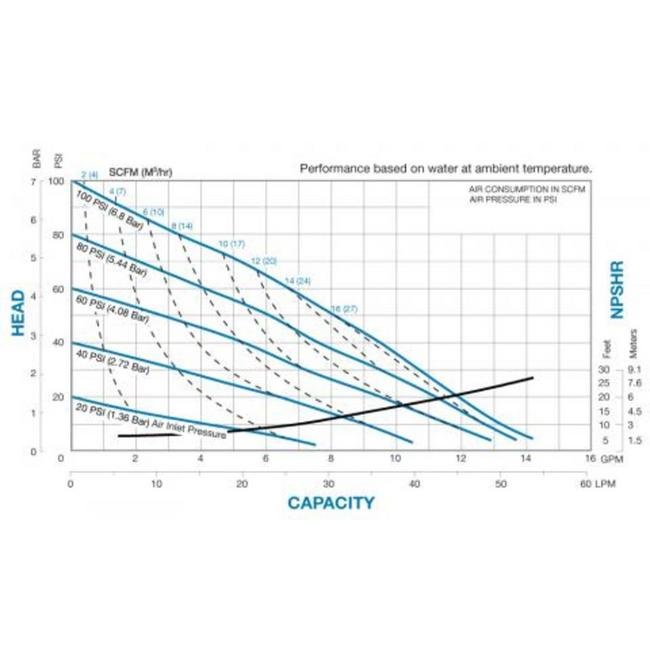

Performance Curves

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

11 in | 269.75 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Length

12 in | 298.70 mm

Specifications Max Flow Rate

14 gpm | 840.00 gph | 53.00 lpm | 3179.75 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Sku

WRS05B2PBTPNI000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

16 lbs | 7.26 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps
