Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-5ae75c
Reliable non-metallic ball valve pump for corrosive fluids, with Polypropylene construction, ideal for waste water applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Claim Your Seller Account
Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

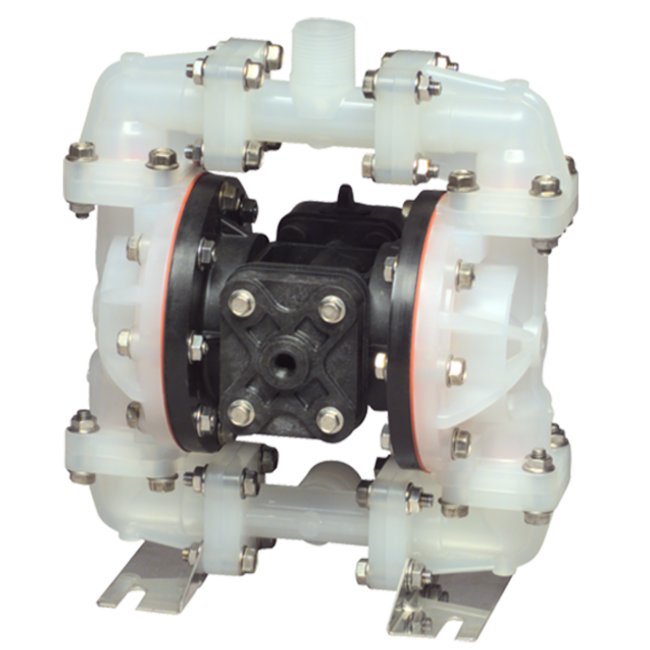

The Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump is a reliable solution for handling highly corrosive fluids, low abrasive fluids, and suspended solids. Constructed with TPE and PTFE options, this pump ensures durability and efficiency. With a Polypropylene wetted M.O.C. and a non-wetted material of 40% Glass Filled Polypropylene, it offers a Max. Flow Rate of 14 gpm. Ideal for waste water applications, this pump delivers exceptional performance in standard duty diaphragm pumping operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

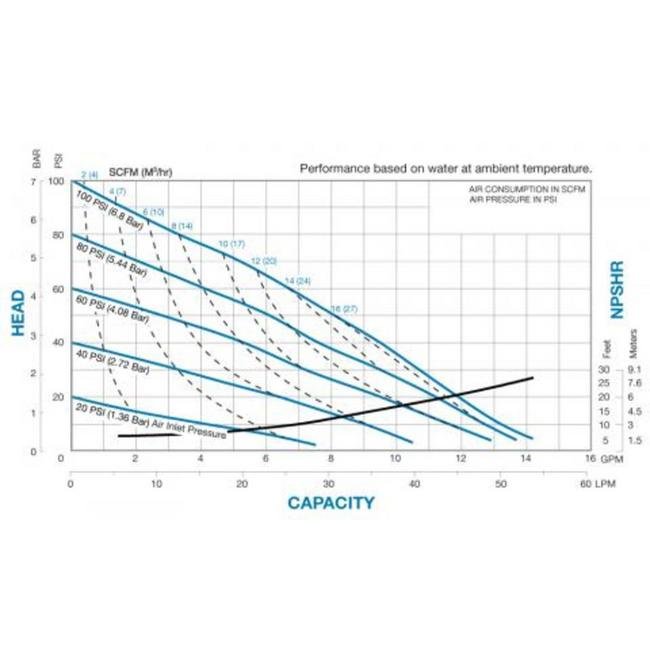

Performance Curves
Specifications Customs Code
ECCN Code EAR99
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
11 in | 269.75 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Length
12 in | 298.70 mm
Specifications Max Flow Rate
14 gpm | 840.00 gph | 53.00 lpm | 3179.75 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Sku
WRS05B2PUTPNI000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Weight
16 lbs | 7.26 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 181.10 mm
Category 6
Standard Duty Diaphragm Pumps
