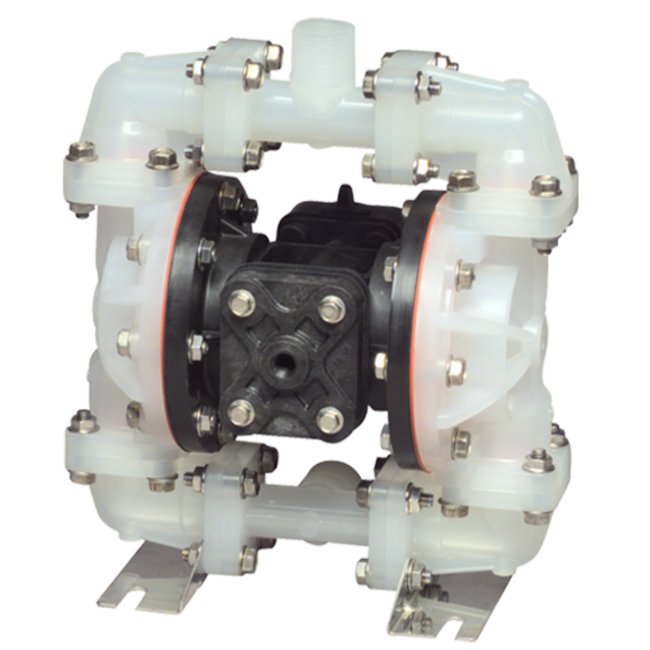

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-231708
Price: 749.99 USD
Availability: OutOfStock

SKU:PRO-231708

Reliable Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump with max 14 gpm flow rate for corrosive fluids & suspended solids.

$749.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump is designed to handle highly corrosive fluids, intermittent/on-demand operations, portable usage, and low abrasive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures durability and reliability. With a maximum flow rate of 14 gpm and solids handling capacity of 0.125 inches, it's ideal for wastewater applications. Trusted for its sealless design and standard duty performance, the Sandpiper S05 is a versatile solution for diverse industrial needs.

Product Specifications

Curves 0

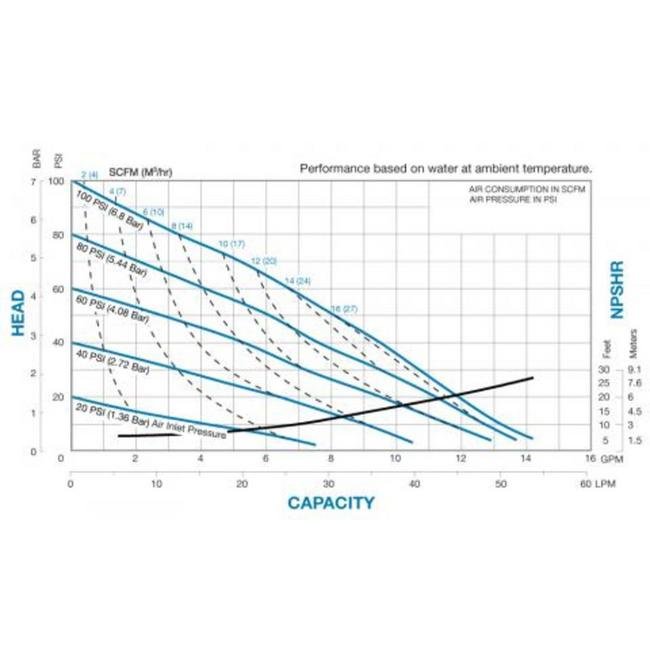

Performance Curves

Specifications Check Valve Seat

Virgin PTFE

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT Tapered | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Polyurethane/Polyurethane

Specifications Height

12 in | 293.12 mm

Specifications Inlet Size

0.5 NPT Threads in | 13 NPT Threads mm

Specifications Intake Pipe Size Internal

1/2" BSPT Tapered | 1/2" NPT

Specifications Length

7 in | 181.10 mm

Specifications Max Flow Rate

0 - 14 gpm | 0 - 52 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

0.5 NPT Threads in | 13 NPT Threads mm

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS05B2KUTPNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

18 lbs | 9 kg

Specifications Wetted Moc

PVDF

Specifications Width

10 in | 256.79 mm
