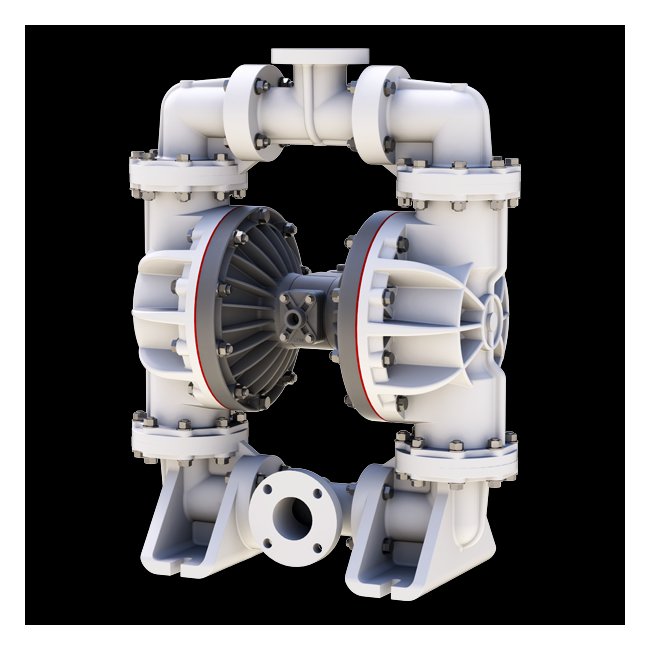

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-8b9035
Explore the Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump for reliable air-powered pumping in water and wastewater systems.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Claim Your Seller Account
Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump is a robust and reliable air-powered double diaphragm pump designed for standard duty applications in water, wastewater, sump, and utility systems. With an intake and discharge pipe size of 1/2", solids handling capacity of 0.125 inches, and a max flow rate of 14 gpm, this pump ensures efficient and consistent performance. Its non-metallic construction featuring Conductive Acetal, Nylon, Polypropylene, and PVDF materials offers superior corrosion resistance and longevity. The Buna-N elastomers and Virgin PTFE check valve seat enhance durability, making it an ideal choice for waste water operations.
Product Specifications
Specifications Check Valve Seat
Virgin PTFE
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Discharge Pipe Size Internal
1/2" BSPT Tapered | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Buna-N
Specifications Intake Pipe Size Internal
1/2" BSPT Tapered | 1/2" NPT
Specifications Max Flow Rate
0 - 14 gpm | 0 - 52 lpm
Specifications Non Wetted Material
Conductive Acetal | Polypropylene with PTFE Coated Hardware
Specifications Porting Position
Bottom Dual Porting (BSPT) (Tapered) | Bottom Dual Porting (NPT) | BSPT Threads (Tapered) | Dual Porting (BSPT) (Tapered) | Dual Porting (NPT) | Top Dual Porting (BSPT) (Tapered) | Top Dual Porting (NPT)
Specifications Pump Style
Standard
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Wetted Moc
Conductive Acetal | Nylon | Polypropylene | PVDF
Category 6
Standard Duty Diaphragm Pumps
