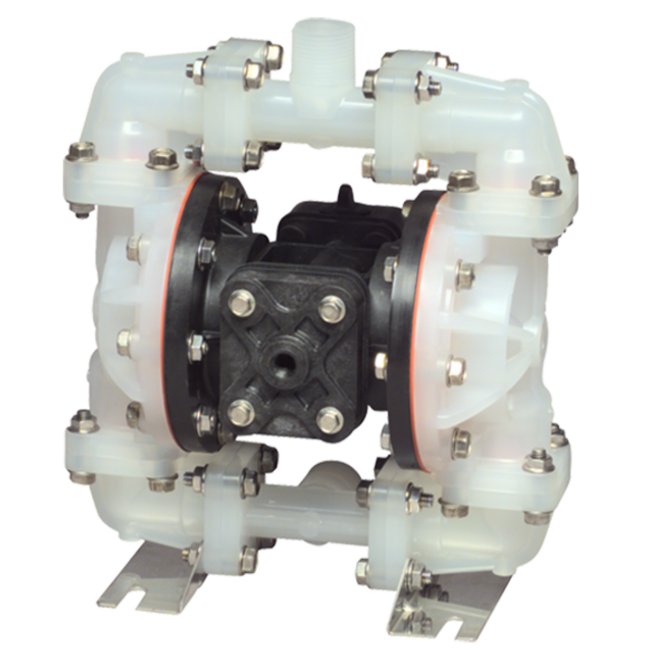

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

PRO-1df990

Reliable and durable diaphragm pump for corrosive fluids with suspended solids

$849.99
$849.99
Sale

Initiate Order

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

$849.99

Quantity: 1

Claim Your Seller Account

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump

$849.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sandpiper S05 Non-Metallic Ball Valve Diaphragm Pump is designed for applications involving highly corrosive fluids, intermittent/on-demand usage, and handling of low abrasive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures durability and reliability. With a standard duty design, PVDF wetted M.O.C., and Virgin PTFE elastomers, it offers optimal performance and longevity.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

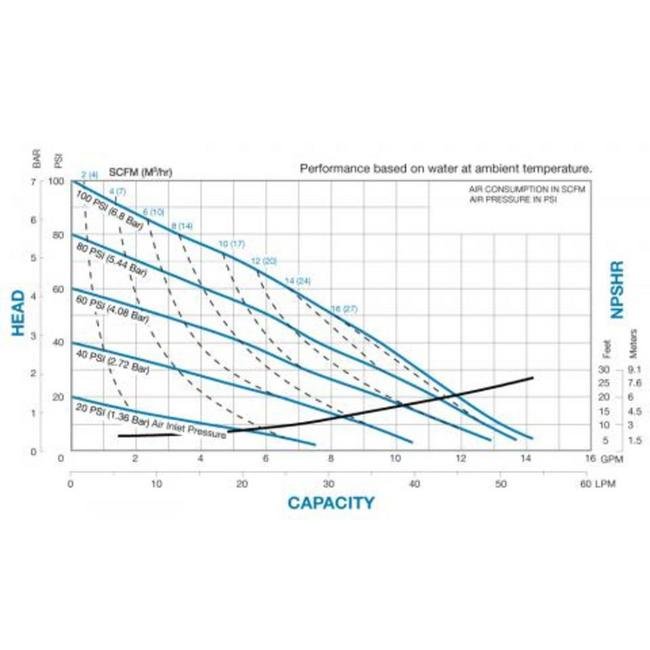

Performance Curves
Specifications Check Valve Seat
Virgin PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code 2B350.i
Specifications Design Level
2
Specifications Discharge Pipe Size Internal
1/2" BSPT Tapered | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup/Virgin PTFE
Specifications Height
12 in | 293.12 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Intake Pipe Size Internal
1/2" BSPT Tapered | 1/2" NPT
Specifications Length
10 in | 256.79 mm
Specifications Max Flow Rate
0 - 14 gpm | 0 - 52 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS05B2K2TPNS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
18 lbs | 9 kg
Specifications Wetted Moc
PVDF
Specifications Width
7 in | 181.10 mm
Category 6
Standard Duty Diaphragm Pumps
