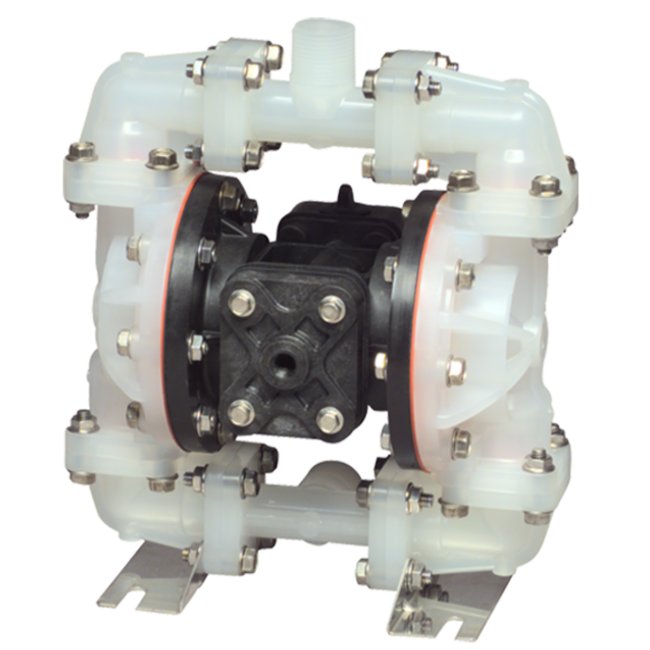

Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
SKU:PRO-eaac9d
Reliable Sandpiper S05 Diaphragm Pump for abrasive fluids with Polypropylene construction and top discharge porting.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
$599.99
Quantity: 1
Claim Your Seller Account
Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S05 Non-Metallic Top Discharge Standard Duty Pump is a reliable choice for intermittent or on-demand pumping of moderately abrasive fluids and suspended solids. Constructed with Polypropylene wetted materials and PTFE check valve seats, this diaphragm pump ensures durability and efficient fluid handling. With a top discharge porting position, it offers easy installation and maintenance. This pump is ideal for water, wastewater, sump, and utility applications, meeting the standard duty requirements for waste water management.
Product Specifications
Curves 0

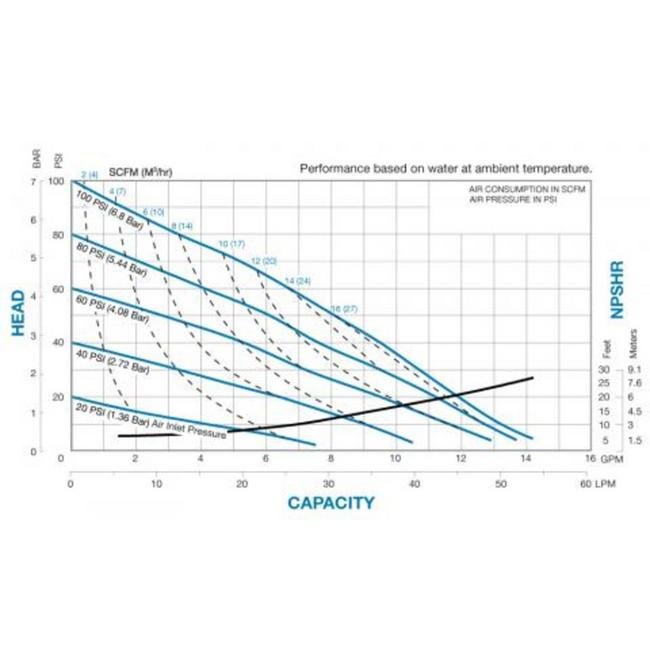

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Customs Code
HS Code 84131900
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
12 in | 293.12 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Length
10 in | 256.79 mm
Specifications Max Flow Rate
0.026 gpm | 1.56 gph | 0.10 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Porting Position
Top Discharge
Specifications Sku
WRS05B2P1TPNS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Weight
11 lbs | 4.99 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 181.10 mm
Category 6
Standard Duty Diaphragm Pumps
