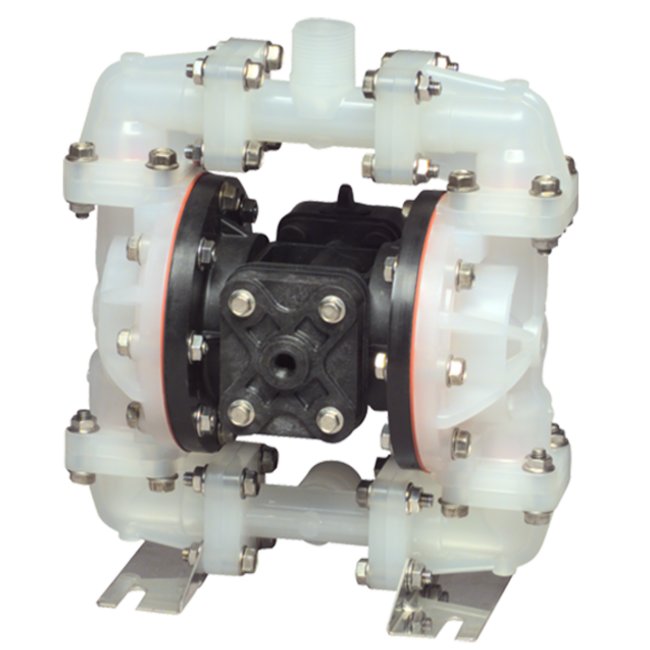

Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
SKU:PRO-2ce7aa
Reliable Sandpiper S05 Non-Metallic Diaphragm Pump for waste water applications in institutional settings.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
$799.99
Quantity: 1
Claim Your Seller Account
Sandpiper S05 Non-Metallic Top Discharge Diaphragm Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S05 Non-Metallic Top Discharge Standard Duty Pump is a reliable solution designed for intermittent, portable applications with moderately abrasive fluids and suspended solids. Built with Polypropylene construction for durability, this pump features a PTFE check valve seat and non-metallic wetted material for enhanced performance. With a top discharge porting position, this pump offers a maximum flow rate of 0.026 gpm, making it ideal for waste water management in institutional settings. Recommended accessory kits available separately for maintenance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

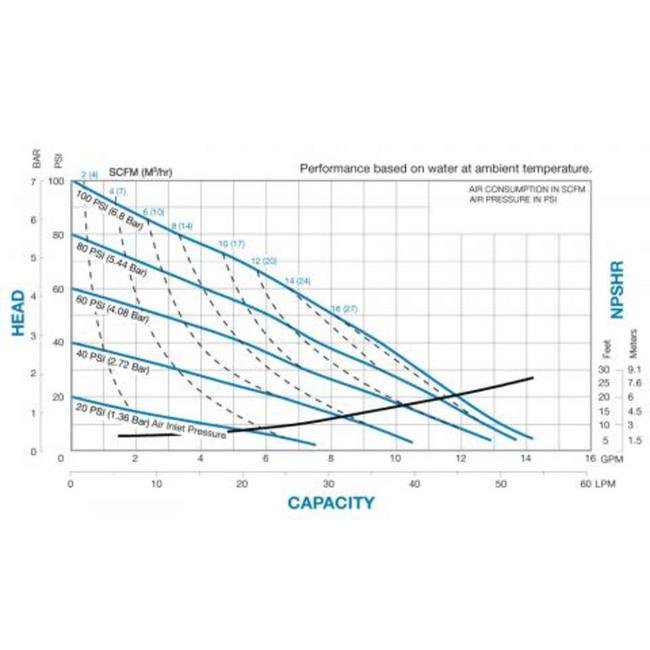

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Customs Code
HS Code 84131900
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
12 in | 293.12 mm
Specifications Inlet Size
.5 BSP in | 13 BSP mm
Specifications Length
10 in | 256.79 mm
Specifications Max Flow Rate
0.026 gpm | 1.56 gph | 0.10 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
.5 BSP in | 13 BSP mm
Specifications Porting Position
Top Discharge
Specifications Sku
WRS05B2PUTPBS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Weight
11 lbs | 4.99 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 181.10 mm
Category 6
Standard Duty Diaphragm Pumps
