Sandpiper S05 PVDF Non-Metallic Top Discharge Diaphragm Pump

Name: Sandpiper S05 PVDF Non-Metallic Top Discharge Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-06601f
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-06601f

Reliable Sandpiper S05 PVDF Non-Metallic Diaphragm Pump for intermittent use with moderately abrasive fluids. Top Discharge design.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S05 Non-Metallic Top Discharge Standard Duty Pump is a high-quality diaphragm pump designed for intermittent or on-demand use with portable applications. Constructed with PVDF-Kynar wetted material and stainless steel check valve seats, this pump is ideal for moderately abrasive fluids with suspended solids. With a displacement per stroke of 0.026 gallons and a maximum flow rate of 0.026 gallons per minute, it offers reliable performance. This pump is compatible with various elastomer materials such as TPE and PTFE, ensuring durability and versatility for diverse industrial applications.

Product Specifications

Curves 0

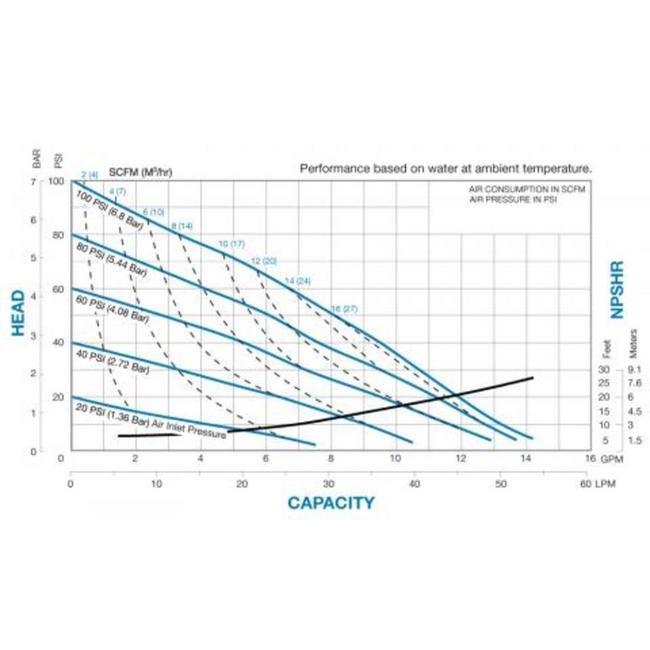

Performance Curves

Specifications Check Valve Seat

Stainless Steel

Specifications Customs Code

HS Code 84131900

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

12 in | 293.12 mm

Specifications Inlet Size

.5 NPT in | 13 NPT mm

Specifications Length

10 in | 256.79 mm

Specifications Max Flow Rate

0.026 gpm | 1.56 gph | 0.10 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

.5 NPT in | 13 NPT mm

Specifications Porting Position

Top Discharge

Specifications Sku

WRS05B2K1SPNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

14 lbs | 6.35 kg

Specifications Wetted Moc

PVDF - Kynar

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S05 PVDF Non-Metallic Top Discharge Diaphragm Pump
