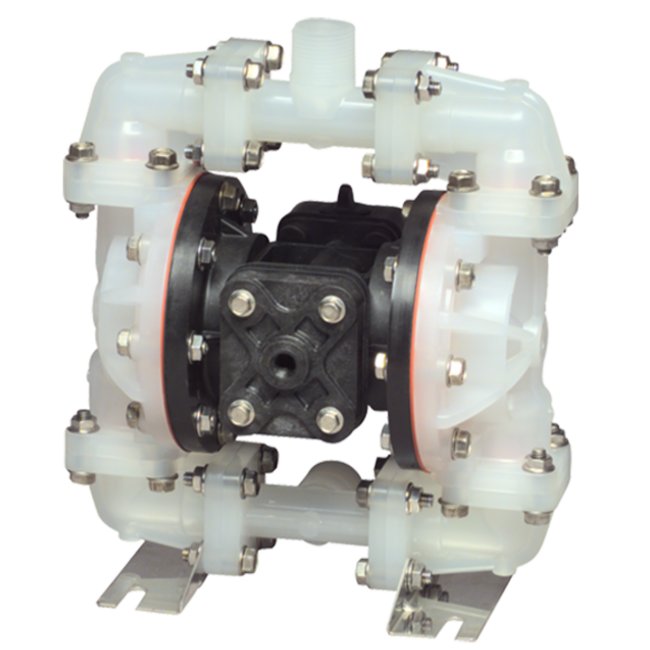

Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump
Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump
SKU:PRO-89fec5
Durable and corrosion-resistant S05 Top Discharge Pump for highly corrosive fluids with TPE and PTFE construction.
Regular price
$1,350.00
Regular price
Sale price
$1,350.00
Unit price
per
Initiate Order
Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump
$1,350.00
Quantity: 1
Claim Your Seller Account
Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump
$1,350.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump is a highly durable and corrosion-resistant solution designed for handling highly corrosive fluids with intermittent/on-demand needs. Made with TPE and PTFE components, this pump is suitable for portable applications dealing with low abrasive fluids and suspended solids. With a PVDF wetted M.O.C. and 40% Glass Filled Polypropylene non-wetted material, this pump ensures reliability and longevity in demanding environments.
Product Specifications
Curves 0

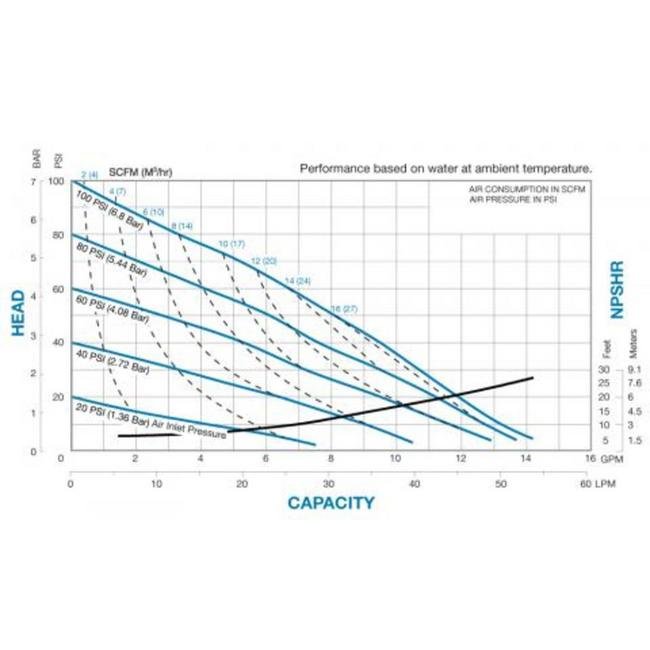

Performance Curves
Specifications Customs Code
ECCN Code 2B350.i
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
12 in | 293.12 mm
Specifications Inlet Size
0.5 BSP Tapered Threads in | 13 BSP Tapered Threads mm
Specifications Length
10 in | 256.79 mm
Specifications Max Flow Rate
14 gpm | 840.00 gph | 53.00 lpm | 3179.75 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Outlet Size
0.5 BSP Tapered Threads in | 13 BSP Tapered Threads mm
Specifications Sku
WRS05B2KZTPBS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Weight
16 lbs | 7.26 kg
Specifications Wetted Moc
PVDF
Specifications Width
7 in | 181.10 mm
Category 6
Standard Duty Diaphragm Pumps
