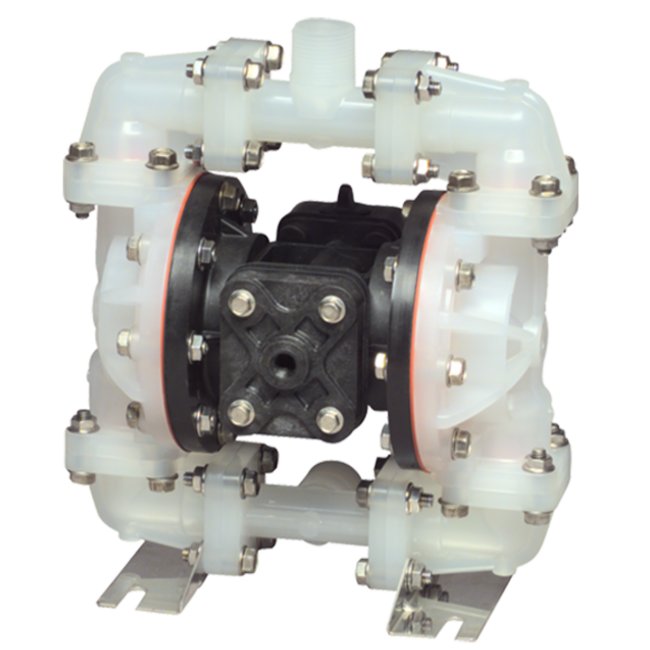

Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump

Name: Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump
Brand: Springer Pumps, LLC
SKU: PRO-243d7e
Price: 849.99 USD
Availability: OutOfStock

SKU:PRO-243d7e

Durable & versatile pump for corrosive fluids. Suitable for portable use. Max flow rate: 14 gpm.

$849.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump is a durable and versatile solution for handling highly corrosive fluids, low abrasive fluids, and suspended solids. Constructed with TPE and PTFE materials, this pump is designed for intermittent/on-demand use, making it ideal for portable applications. With a maximum flow rate of 14 gpm, this pump delivers reliable performance for standard duty diaphragm pump applications.

Product Specifications

Curves 0

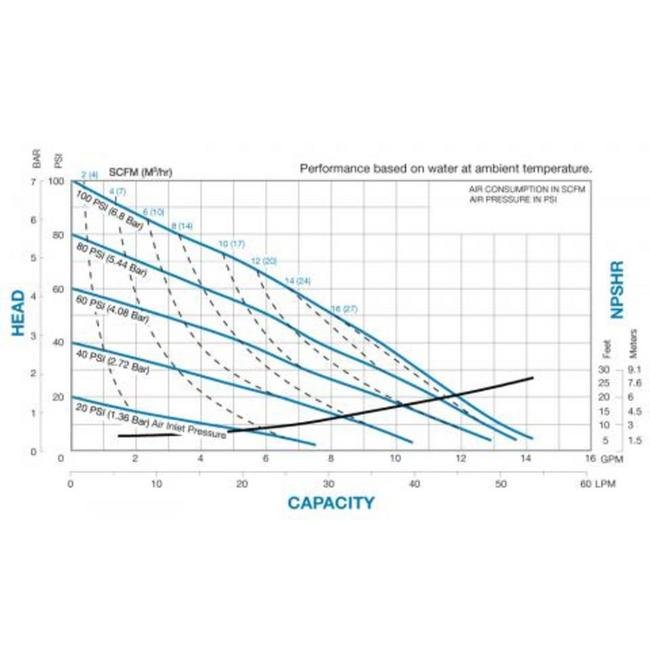

Performance Curves

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

11 in | 269.75 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Length

12 in | 298.70 mm

Specifications Max Flow Rate

14 gpm | 840.00 gph | 53.00 lpm | 3179.75 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Sku

WRS05B2P2TPNI000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

16 lbs | 7.26 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S05 Top Discharge Non-Metallic Ball Valve Pump
