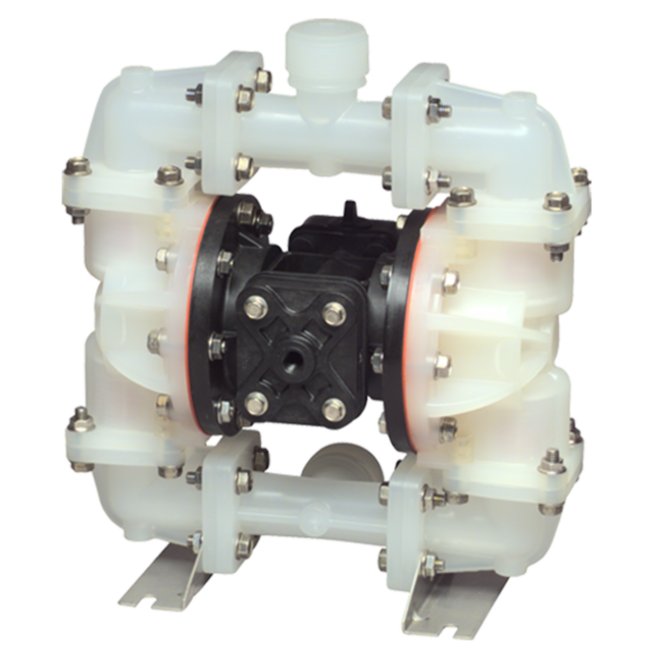

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-bc7ffb
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-bc7ffb

Top discharge non-metallic ball valve diaphragm pump for corrosive fluids, 23 gpm flow rate, durable TPE & PTFE design.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump is a top discharge solution designed for highly corrosive fluids, intermittent use, portability, and low abrasive fluid applications. Built with TPE and PTFE components, this pump offers exceptional durability and resistance to corrosive environments. Featuring a 3/4" BSP inlet and 1 1/2" BSP outlet, with a maximum flow rate of 23 gpm, this pump is ideal for standard duty diaphragm pump requirements. The Polypropylene construction ensures reliability and longevity.

Product Specifications

Curves 0

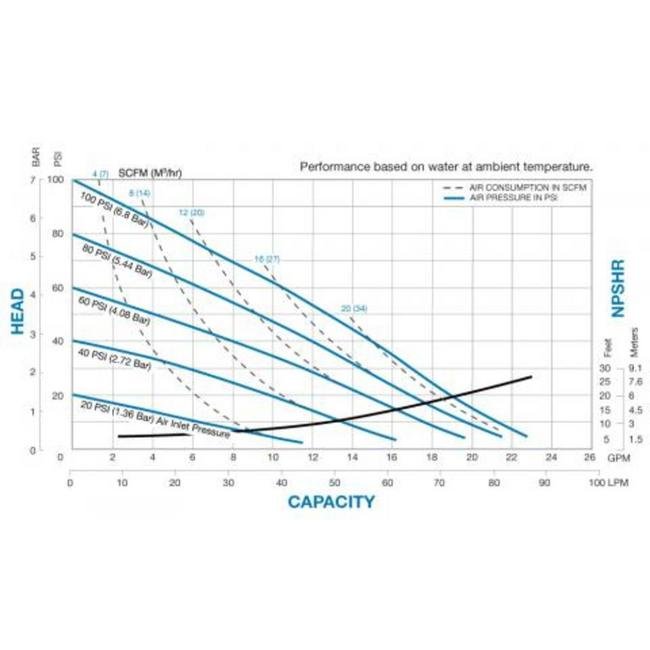

Performance Curves

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Santoprene/Santoprene

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

3/4" NPT-F (BSP)

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1 1/2" NPT-M (BSP)

Specifications Porting Position

BSP Threads

Specifications Pump Style

Standard

Specifications Sku

WRS07B1P1PPBS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

17 lbs | 8 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
