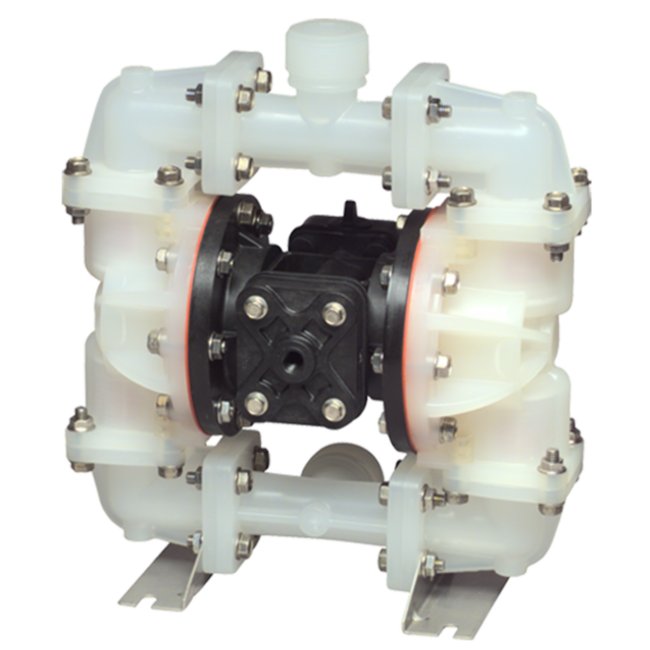

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-06b1f9
Reliable Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids with TPE and PTFE options. Max flow rate: 23 gpm, PVDF construction.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
$1,799.99
Quantity: 1
Claim Your Seller Account
Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump is engineered for highly corrosive fluids, intermittent use, portability, and low abrasive content with suspended solids. Constructed with TPE and PTFE options for diaphragms and check valves, this pump ensures reliable operation in demanding environmental conditions. With a max flow rate of 23 gpm and PVDF wetted M.O.C., it guarantees durability and efficiency in water and wastewater applications.
Product Specifications
Curves 0

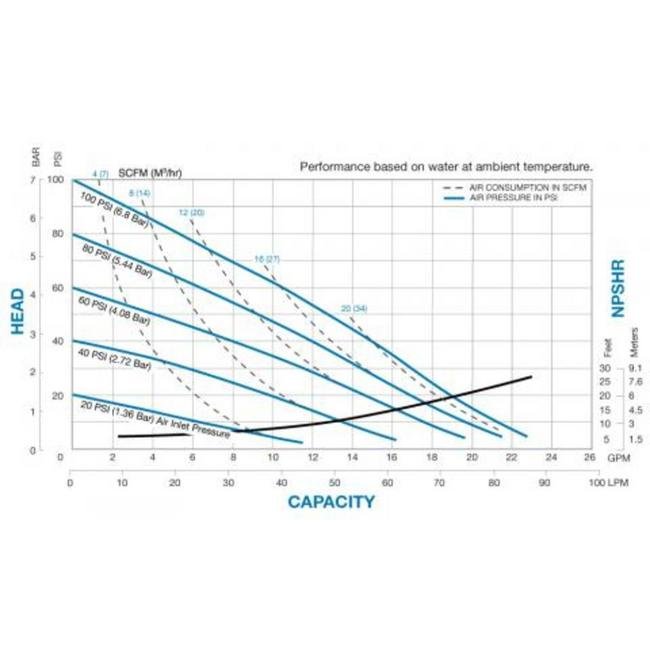

Performance Curves
Specifications Customs Code
ECCN Code 2B350.i
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
0.5 BSP Tapered Threads in | 13 BSP Tapered Threads mm
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS07B1KZKPBS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Weight
21 lbs | 9.53 kg
Specifications Wetted Moc
PVDF
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
