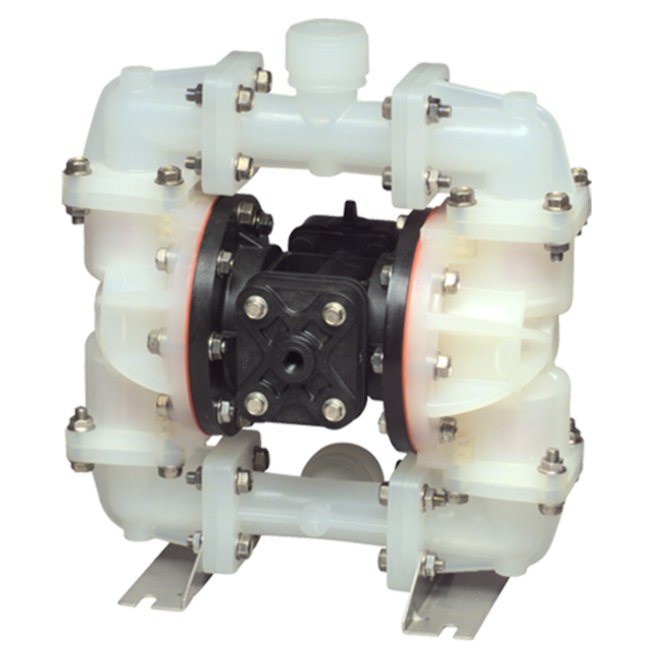

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-80e03d
Price: 759.99 USD
Availability: OutOfStock

SKU:PRO-80e03d

Reliable Sandpiper S07 Non-Metallic Diaphragm Pump for corrosive fluids & suspended solids. Suitable for standard duty applications.

$759.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump is designed for highly corrosive fluids and low abrasive substances. Featuring thermal plastic elastomers and PTFE construction for durability, it is ideal for intermittent use, portability, and handling suspended solids. With a 3/4" NPT-F inlet and 1 1/2" NPT-M outlet, this pump meets standard duty diaphragm pump requirements.

Product Specifications

Curves 0

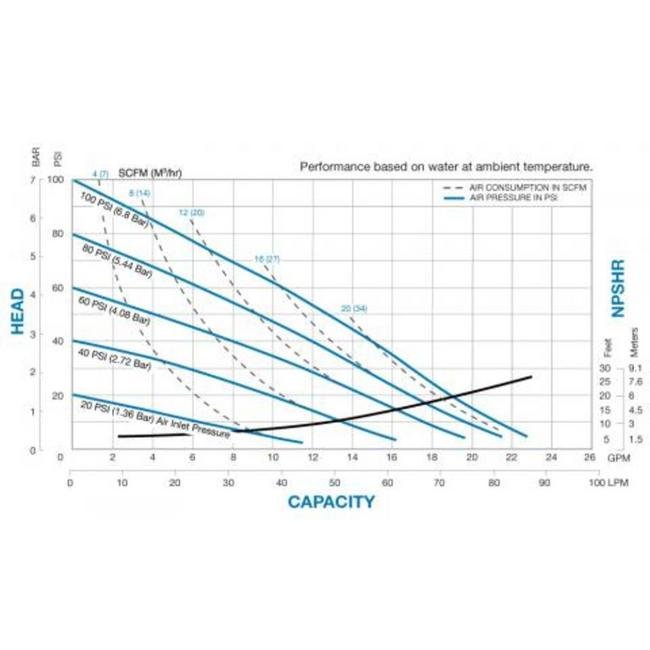

Performance Curves

Specifications Check Valve Seat

PVDF

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code 2B350.i

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Virgin PTFE - Santoprene Backup/Virgin PTFE

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

3/4" NPT-F (BSP)

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1 1/2" NPT-M (BSP)

Specifications Porting Position

BSP Threads

Specifications Pump Style

Standard

Specifications Sku

WRS07B1K2KPBS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

21 lbs | 9.50 kg

Specifications Wetted Moc

PVDF

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
