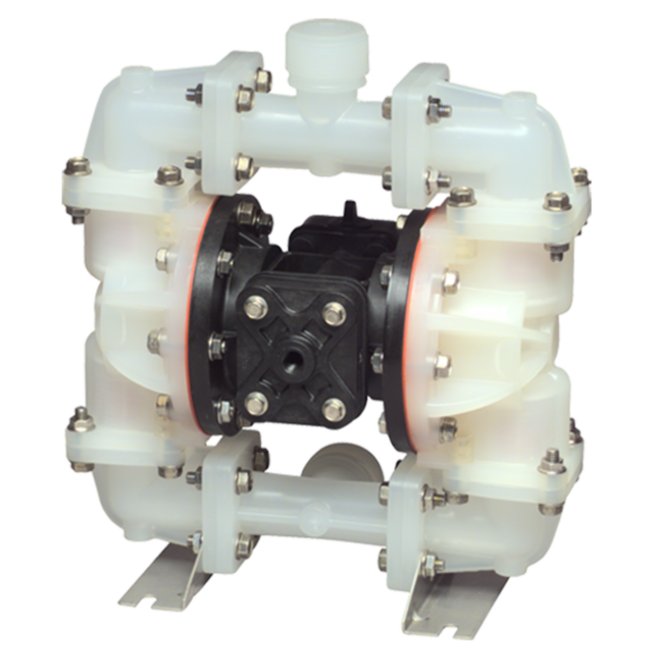

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-ac9f24
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-ac9f24

Corrosion-resistant S07 Non-Metallic Diaphragm Pump for demanding applications. TPE and PTFE construction. Ideal for portable use.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S07 Top Discharge Non-Metallic Trihedral Valve Pump is designed for handling highly corrosive fluids with intermittent/on-demand needs, making it perfect for portable applications with low abrasive fluids and suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures exceptional durability and chemical resistance. With a Solids Handling capacity of 4mm and a Max. Flow Rate of 87 lpm, this pump offers reliable performance in demanding environments. Recommended accessories for optimal operation include the Sandpiper 476.219.000 Air End Kit and the 476.180.657 Wet End Kit.

Product Specifications

Curves 0

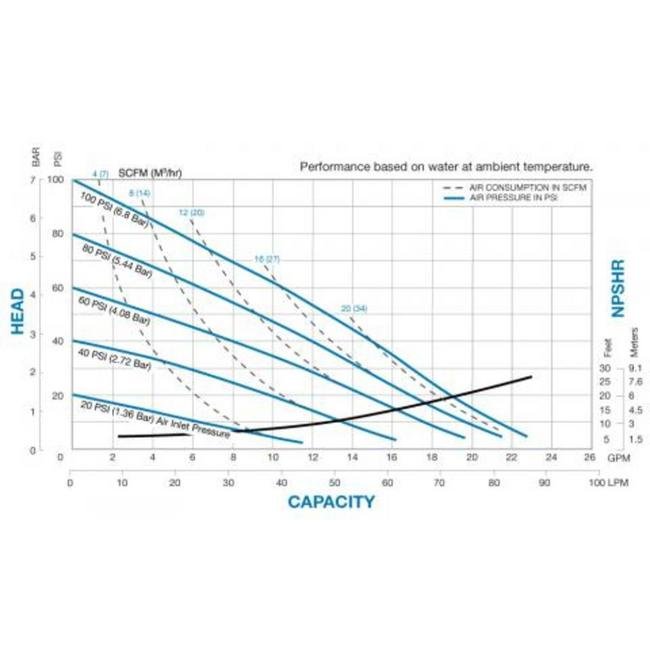

Performance Curves

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Santoprene/Buna

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

3/4" NPT-F (BSP)

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1 1/2" NPT-M (BSP)

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS07T1P7PPNS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

17 lbs | 8 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
