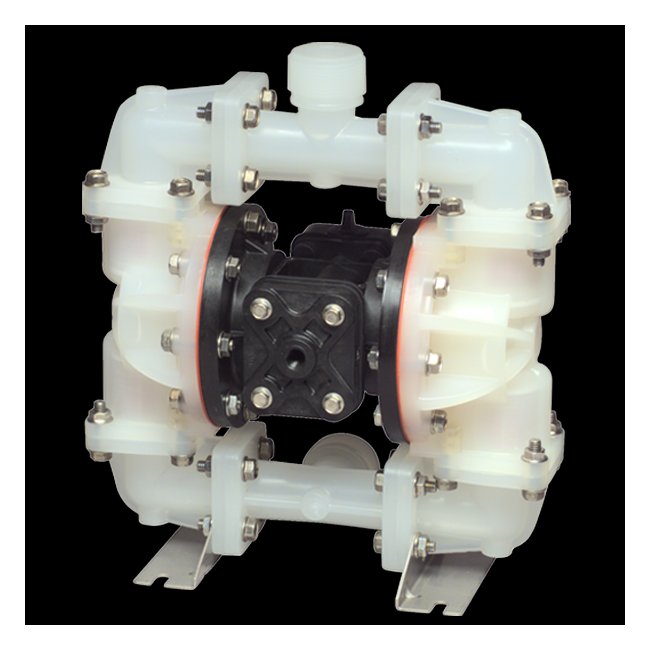

Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S07 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-97a170
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-97a170

Efficient and durable S07 Non-Metallic Ball Valve Pump with 0-23 gpm capacity and 0.15" solids handling. Nylon/Polypropylene construction. Meets Sealless pump standards.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S07 Top Discharge Non-Metallic Ball Valve Pump is a durable and efficient air-powered double diaphragm pump. With a capacity of 0 to 23 gpm, it handles solids up to 0.15 inches effortlessly. Constructed with Nylon wetted materials and Polypropylene non-wetted materials, it ensures reliable performance. This pump meets industry standards for Sealless pumps, making it a perfect choice for standard duty diaphragm pump applications.

Product Specifications

Curves 0

Performance Curves

Specifications Check Valve Seat

Nylon

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Virgin PTFE - Santoprene Backup/Virgin PTFE

Specifications Height

13 in | 327.15 mm

Specifications Inlet Size

3/4" NPT-F (BSP)

Specifications Length

10 in | 263.65 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1 1/2" NPT-M (BSP)

Specifications Porting Position

BSP Threads

Specifications Pump Style

Standard

Specifications Sku

WRS07B1N2NPBS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

18 lbs | 9 kg

Specifications Wetted Moc

Nylon

Specifications Width

10 in | 260.35 mm
