Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
SKU:PRO-f993b5
Reliable Sandpiper S07 Trihedral Valve Diaphragm Pump for waste water applications. Capacity up to 23 gpm, solid-handling up to 0.15".
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
$789.99
Quantity: 1
Claim Your Seller Account
Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

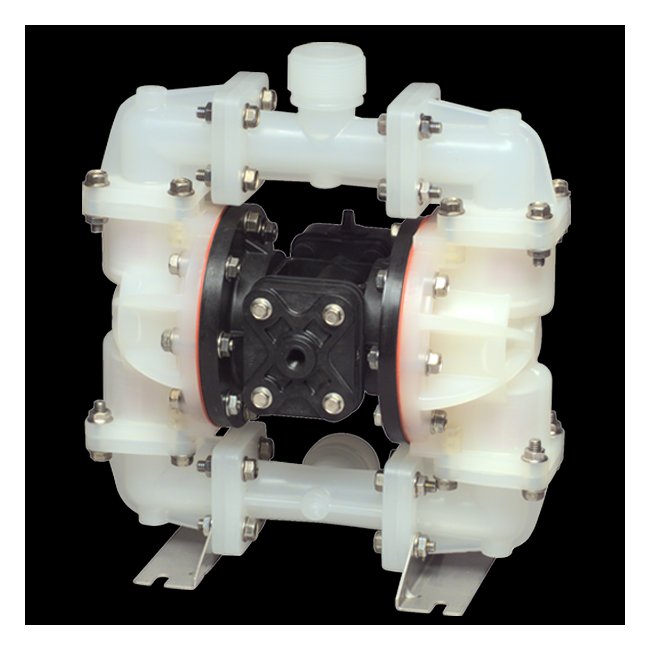

The Sandpiper S07 Top Discharge Non-Metallic Trihedral Valve Pump is a high-performance air-operated double diaphragm pump designed for handling standard duty waste water applications. With a capacity ranging from 0 to 23 gpm and the capability to handle solids up to 0.15", this pump ensures efficient and reliable operation. Featuring a Trihedral check valve type and constructed with Polypropylene and Virgin PTFE materials, it meets the highest standards of durability and chemical resistance. Ideal for industrial settings, this pump offers exceptional performance and longevity.
Product Specifications
Curves 0
Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Trihedral
Specifications Customs Code
ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup Viton®
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
BSP Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07T1P8PPBS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
21 lbs | 9.50 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
