Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
SKU:PRO-f63706
Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump - Reliable air-powered pump for standard duty applications. Max flow rate: 23 gpm.
Regular price
$799.00
Regular price
Sale price
$799.00
Unit price
per
Initiate Order
Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
$799.00
Quantity: 1
Claim Your Seller Account
Sandpiper S07 Non-Metallic Trihedral Valve Diaphragm Pump
$799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

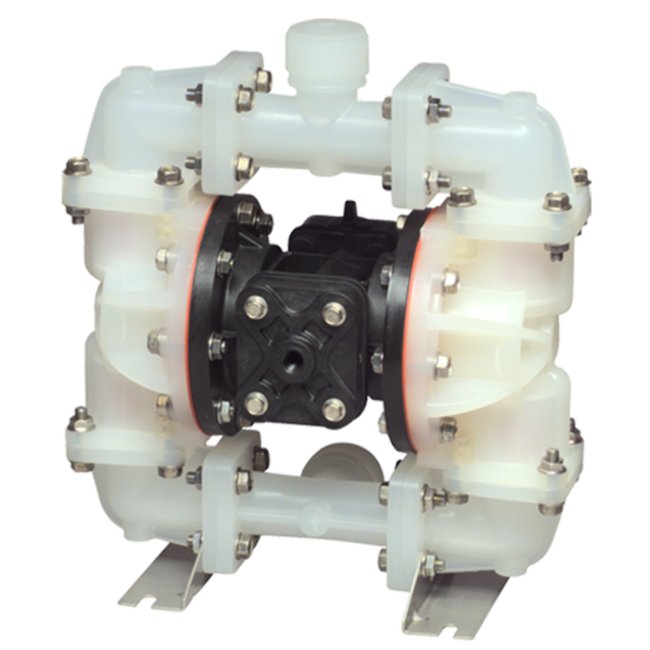

The Sandpiper S07 Top Discharge Non-Metallic Trihedral Valve Pump is a reliable air-powered double diaphragm pump designed for standard duty applications. Featuring a Trihedral check valve for efficient flow control, this pump offers a max flow rate of 23 gpm, solids handling up to 0.15", and a displacement of 0.026 gallons per stroke. Constructed with polypropylene wetted materials and Santoprene/Buna elastomers, it ensures durability and chemical resistance. With BSP threaded ports and a weight of 21 lbs, this pump is ideal for water, wastewater, sump, and utility diaphragm pumping needs.
Product Specifications
Curves 0

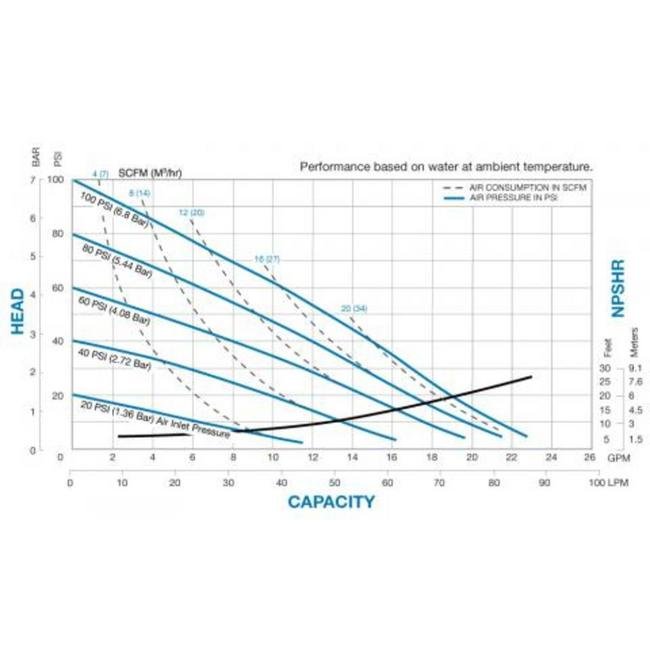

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Trihedral
Specifications Customs Code
ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene/Buna
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
BSP Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07T1P7PPBS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
21 lbs | 9.50 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
