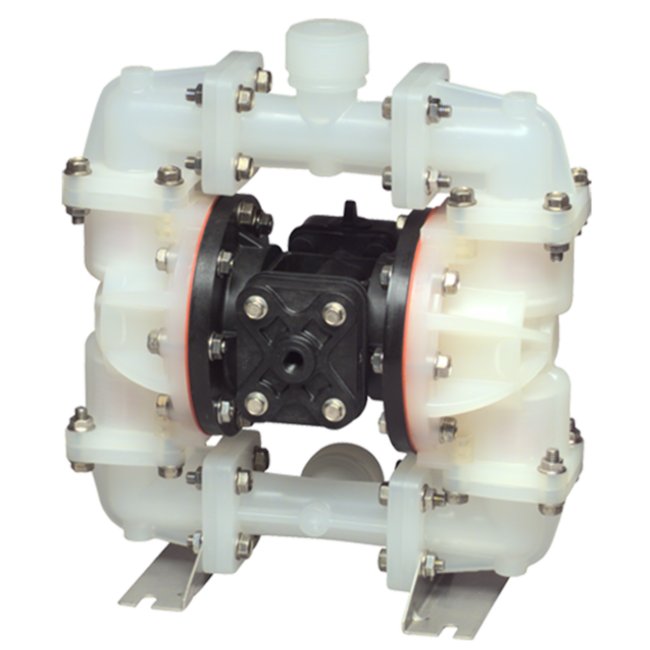

Sandpiper S07 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S07 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-213016
Reliable S07 Non-Metallic Ball Valve Pump for corrosive fluids. Max flow rate of 23 gpm. Ideal for low abrasive fluids.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Sandpiper S07 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
$789.99
Quantity: 1
Claim Your Seller Account
Sandpiper S07 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S07 Top Discharge Non-Metallic Ball Valve Diaphragm Pump is designed for highly corrosive fluids and intermittent operation. Constructed with TPE/PTFE diaphragms and check valves, this pump is ideal for low abrasive fluids and suspended solids. With a maximum flow rate of 23 gpm and solid handling capability of 0.15 inches, it offers reliable and efficient performance.
Product Specifications
Curves 0

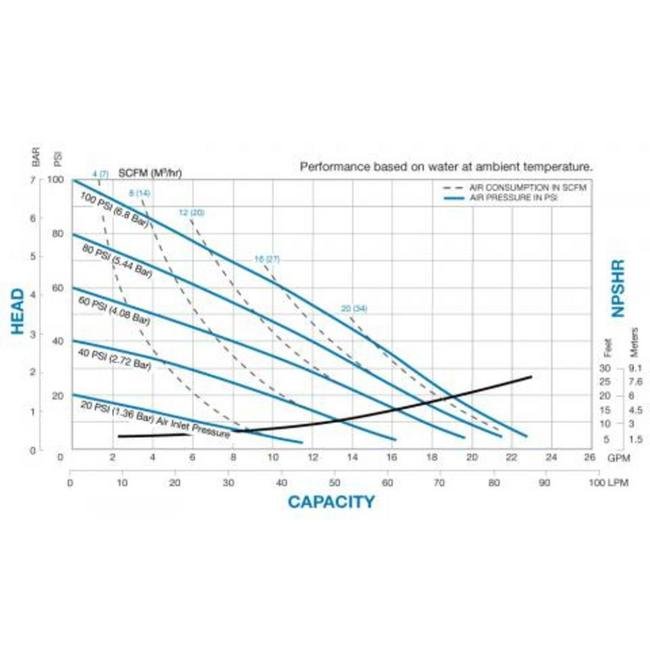

Performance Curves
Specifications Check Valve Seat
Nylon
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene/Santoprene
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07B1N1NPNS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
18 lbs | 9 kg
Specifications Wetted Moc
Nylon
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
