Sandpiper S07 Non-Metallic Ball Valve Pump, ideal for corrosive fluids, features TPE/PTFE construction, 23 gpm flow rate, and 0.15" solids handling.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

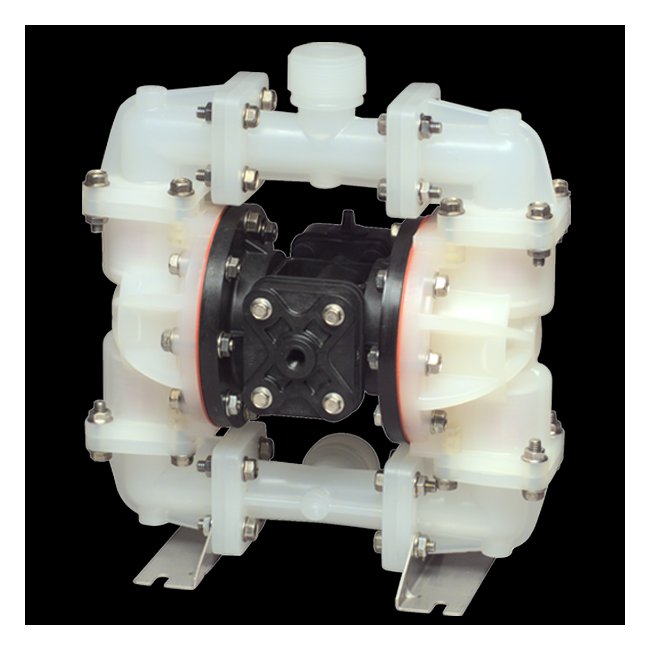

The Sandpiper S07 Top Discharge Non-Metallic Ball Valve Pump is designed for highly corrosive fluids with intermittent operation needs. Constructed with TPE and PTFE components, it is ideal for low abrasive fluids with suspended solids. This air-powered double diaphragm pump features a ball check valve type, PVDF wetted M.O.C., Santoprene elastomers, and Polypropylene non-wetted material. With a max flow rate of 23 gpm, solids handling of 0.15 inches and weighing 21 lbs, the Sandpiper S07 is a reliable choice for standard duty applications.

Product Specifications

Curves 0

Performance Curves

Specifications Check Valve Seat

PVDF

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Santoprene/Santoprene

Specifications Height

13 in | 327.15 mm

Specifications Inlet Size

3/4" NPT-F (BSP)

Specifications Length

10 in | 263.65 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1 1/2" NPT-M (BSP)

Specifications Porting Position

BSP Threads

Specifications Pump Style

Standard

Specifications Sku

WRS07B1K1KPBS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

21 lbs | 9.50 kg

Specifications Wetted Moc

PVDF

Specifications Width

10 in | 260.35 mm
