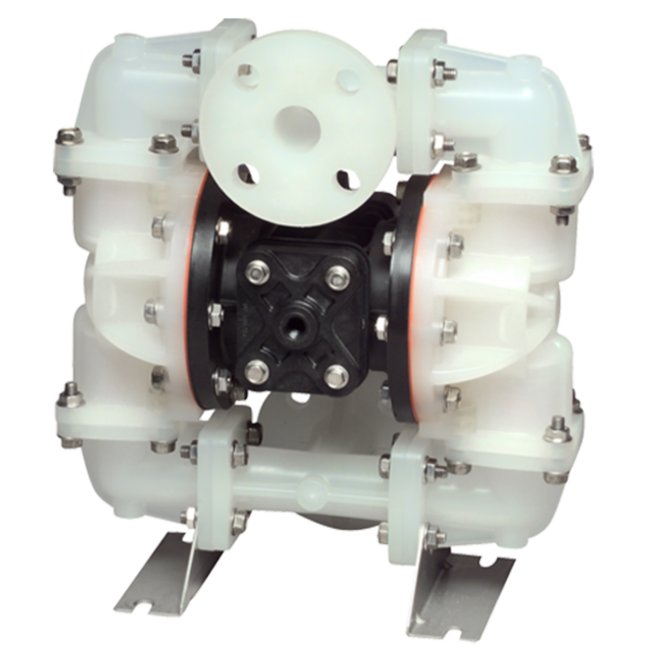

The Sandpiper S10 Top Discharge Non-Metallic Ball Valve Pump is designed for handling highly corrosive fluids, low abrasive fluids, and suspended solids. Constructed with TPE and PTFE components, this pump ensures reliability and durability. With a 1" ANSI flange inlet and outlet size, along with a solid handling capacity of 0.15 inches, it offers efficient performance for standard duty applications. The Polypropylene construction, Santoprene elastomers, and Polypropylene check valve seat make it a robust choice for waste water and utility pumping needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

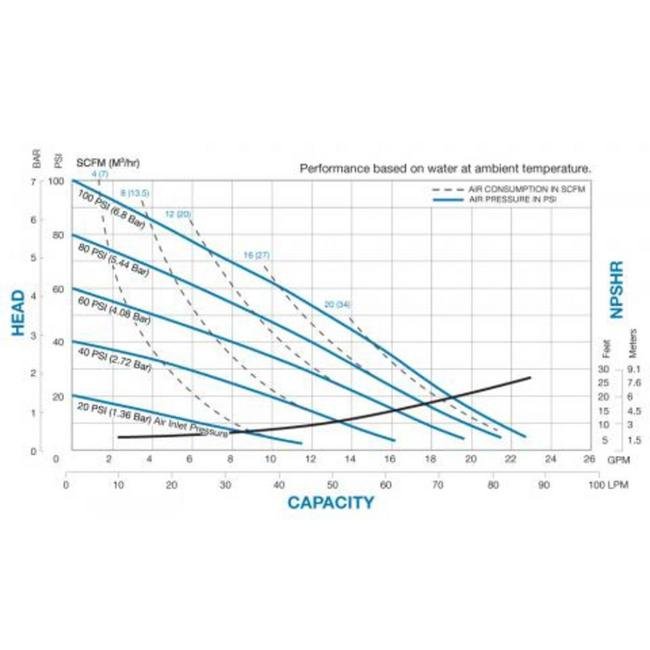

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene/Santoprene
Specifications Height
14 in | 350.84 mm
Specifications Inlet Size
1" ANSI Flange
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1" ANSI Flange
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS10B1P1PPAS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
17 lbs | 8 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
8 in | 192.09 mm
