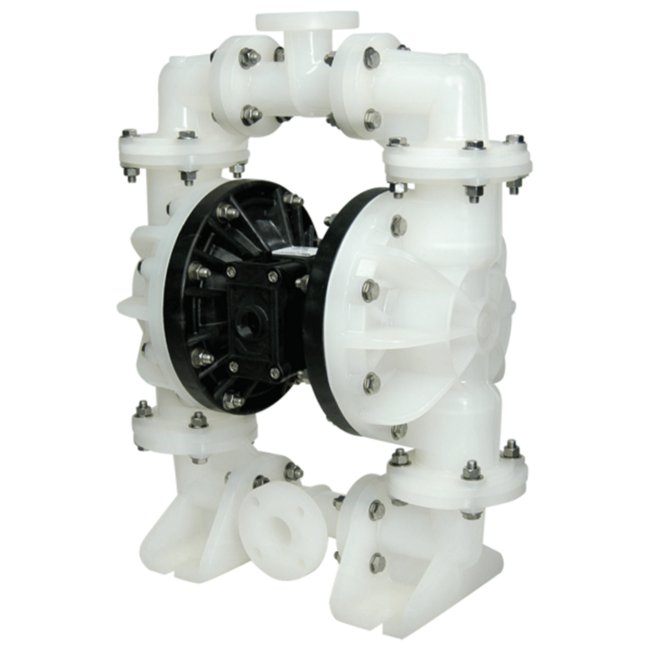

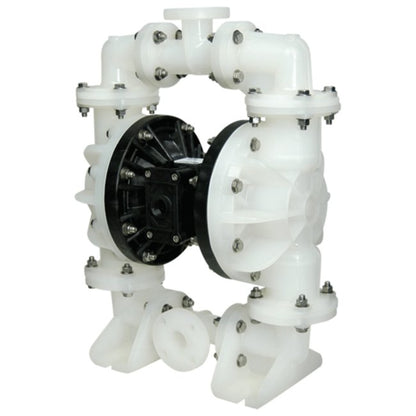

Sandpiper S15 ATEX Top Discharge Diaphragm Pump

Name: Sandpiper S15 ATEX Top Discharge Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-f2c761
Price: 1899.99 USD
Availability: OutOfStock

SKU:PRO-f2c761

Sandpiper S15 ATEX Top Discharge Diaphragm Pump for portable and abrasive fluid handling applications.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S15 ATEX Top Discharge Diaphragm Pump is designed for intermittent, portable, and moderately abrasive fluid handling. Constructed with conductive polypropylene, it features a ball check valve type for efficient operation. With a max flow rate of 100 gpm, this pump is ideal for water, wastewater, sump, or utility applications. Accessories like Wet End and Air End Kits are available separately for maintenance needs.

Product Specifications

Curves 0


Dimensions 0

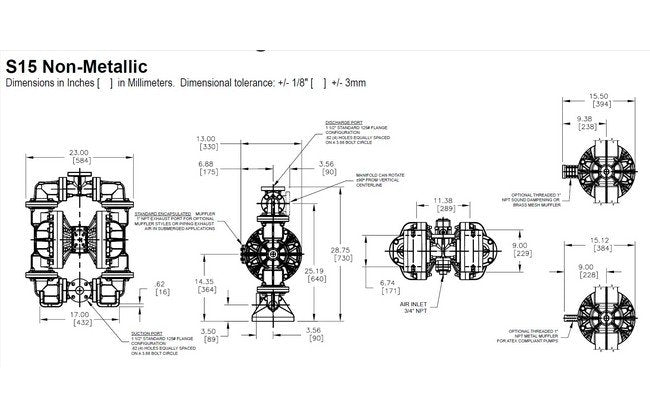

Dimensions

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.43 gal | 1.63 lit

Specifications Height

29 in | 730.25 mm

Specifications Inlet Size

1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm

Specifications Length

23 in | 0.5842 m | 584.20 mm

Specifications Max Flow Rate

100 gpm | 6000.00 gph | 378.54 lpm

Specifications Non Wetted Material

Conductive Polypropylene

Specifications Porting Position

Top Discharge

Specifications Sku

WRS15B3C1PCUS600SP

Specifications Solids Handling

0.47 in | 12 mm

Specifications Weight

85 lbs | 38.56 kg | 38.56 Kilogram

Specifications Wetted Moc

Conductive Polypropylene

Specifications Width

13 in | 0.3302 m | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S15 ATEX Top Discharge Diaphragm Pump
