Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-8b9035
Reliable Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump for waste water handling. Chemical-resistant materials, efficient design for institutional use.
Regular price
$1,459.99
Regular price
Sale price
$1,459.99
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$1,459.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$1,459.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

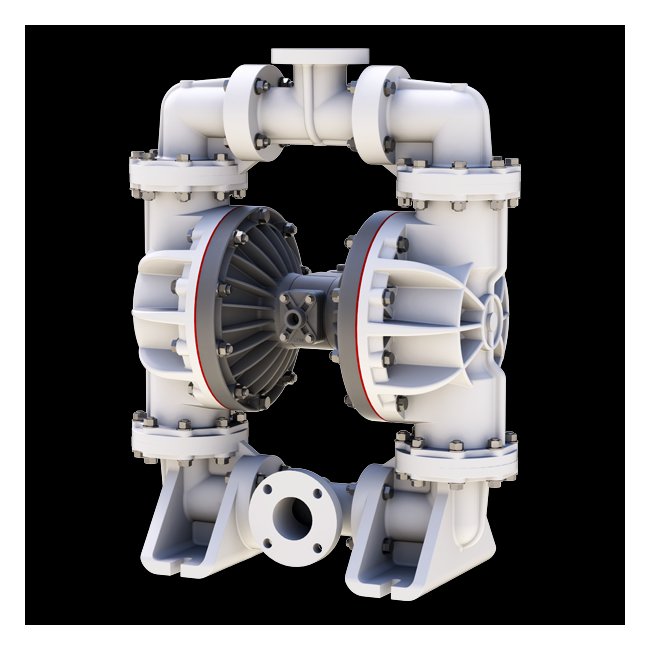

The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is a reliable air-powered double diaphragm pump designed for standard duty applications in waste water handling. With a 1 1/2" ANSI Flange inlet and outlet, it offers efficient solids handling up to 0.47 inches. Constructed with Polypropylene and PVDF wetted materials, and various elastomer options, it ensures chemical compatibility and durability. The pump features a ball check valve, nylon check valve seat, and options for different porting positions, making it versatile and easy to install. Ideal for institutional and government settings requiring quality and efficiency.
Product Specifications
Curves 0

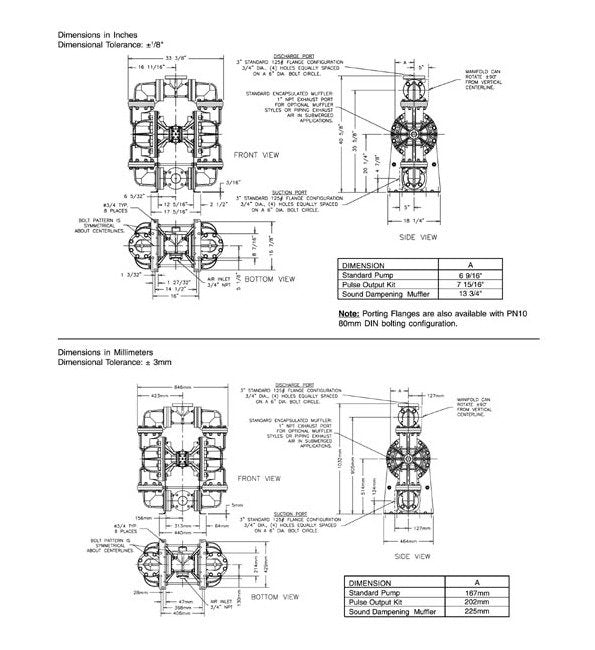

Dimensions 0
Dimensions
Specifications Check Valve Seat
Nylon
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.36 gal | 1.36 lit
Specifications Elastomers
PTFE - Santoprene Backup/PTFE | PTFE Pumping, PTFE-Santoprene Backup Driver/PTFE | Santoprene Pumping, Santoprene Driver/Santoprene | Santoprene/Santoprene
Specifications Inlet Size
1 1/2" ANSI Flange | PN10 40 mm DIN Flange
Specifications Max Flow Rate
0 - 90 gpm | 0 - 340 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum with PTFE Coated Hardware | Painted Aluminum | Painted Aluminum PTFE | PTFE Coated Aluminum | PTFE Coated Aluminum with PTFE Coated Hardware
Specifications Outlet Size
1 1/2" ANSI Flange | PN10 40 mm DIN Flange
Specifications Porting Position
Bottom Dual Porting (ANSI) | DIN Flange | Dual Porting (ANSI) | Top Dual Porting (ANSI)
Specifications Pump Style
Containment Duty with Electronic Leak Detection (110V) | Containment Duty with Electronic Leak Detection (220V) | Containment Duty with Mechanical Leak Detection
Specifications Solids Handling
0.47 in | 12 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Wetted Moc
Polypropylene | PVDF
Category 6
Standard Duty Diaphragm Pumps
