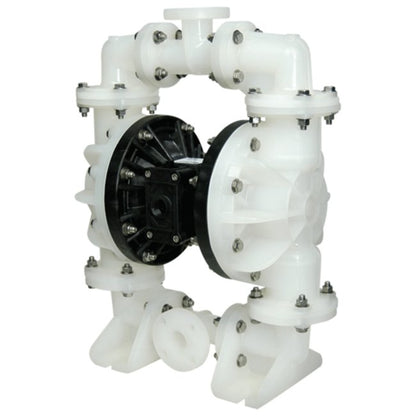

Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-f12629
Price: 1599.99 USD
Availability: OutOfStock

SKU:PRO-f12629

Reliable Sandpiper S15 Non-Metallic Ball Valve Pump for corrosive fluids & waste water applications. Max flow rate 100 gpm.

$1,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for highly corrosive fluids, intermittent use, and low abrasive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump is ideal for waste water applications. With a max flow rate of 100 gpm and built with Polypropylene materials, it offers durability and reliability for various industrial settings.

Product Specifications

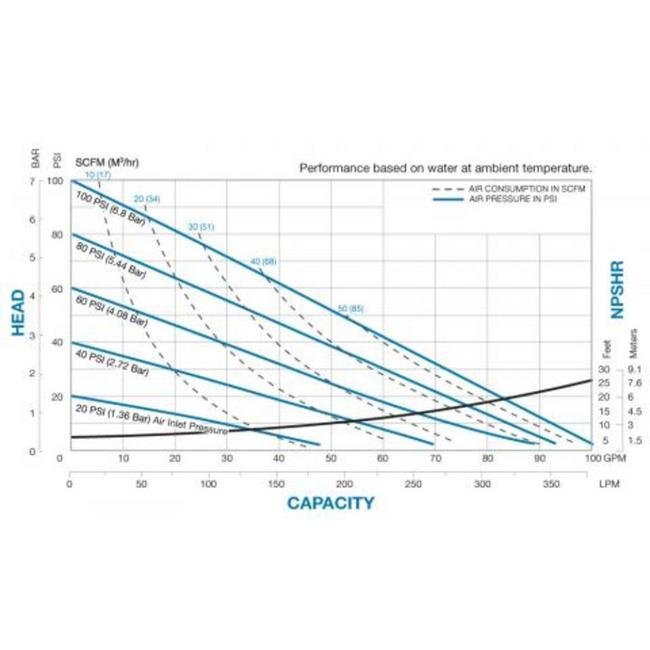

Curves 0


Dimensions 0

Dimensions

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.43 gal | 1.63 lit

Specifications Height

29 in | 730.25 mm

Specifications Inlet Size

1.5 ANSI Flange in | 38 ANSI Flange mm

Specifications Length

23 in | 584.20 mm

Specifications Max Flow Rate

100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS15B3PZPPAS000SP

Specifications Solids Handling

0.47 in | 12 mm

Specifications Weight

82 lbs | 37.19 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

13 in | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps

Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
