Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-135ade
Versatile and durable S15 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids and suspended solids.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$1,599.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

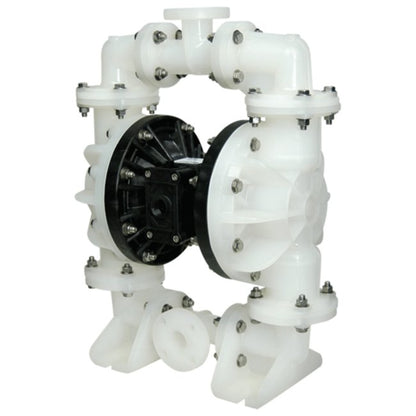

The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed specifically for handling highly corrosive fluids, intermittent/on-demand applications, portable use, low abrasive fluids, and suspended solids. With construction using TPE and PTFE in diaphragms and check valves, this pump ensures durability and reliability. The pump offers a Max. Flow Rate of 100 gpm, Solids Handling up to 0.47 inches, and a displacement of 0.43 gallons per stroke. Its Polypropylene wetted material and compatibility with various accessories make it a versatile and efficient choice for standard duty diaphragm pump needs.
Product Specifications

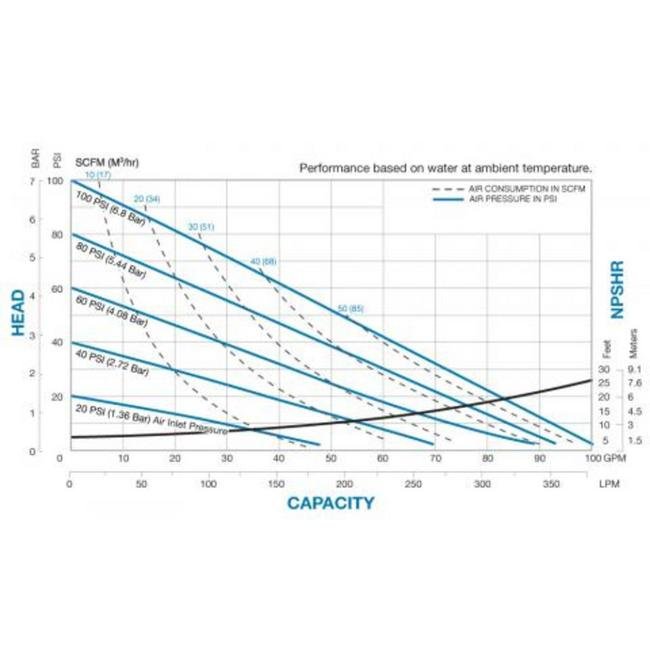

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3PNPPAS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
