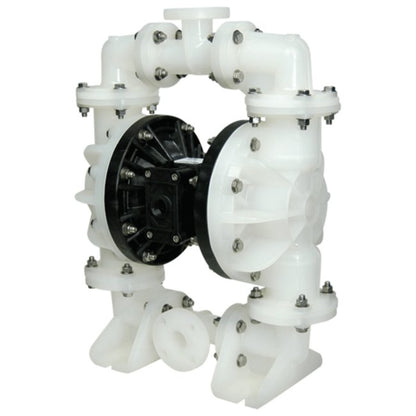

Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-fd5cfe
Durable and corrosion-resistant S15 Non-Metallic Ball Valve Diaphragm Pump for waste water handling
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$2,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for highly corrosive fluids, intermittent usage, and low abrasive liquids with suspended solids. Constructed with TPE and PTFE components, it offers exceptional durability and chemical resistance. This pump features a 1.5 ANSI flange inlet size, PVDF wetted M.O.C., and a max flow rate of 100 gpm. It is ideal for waste water applications and meets stringent institutional procurement standards.
Product Specifications

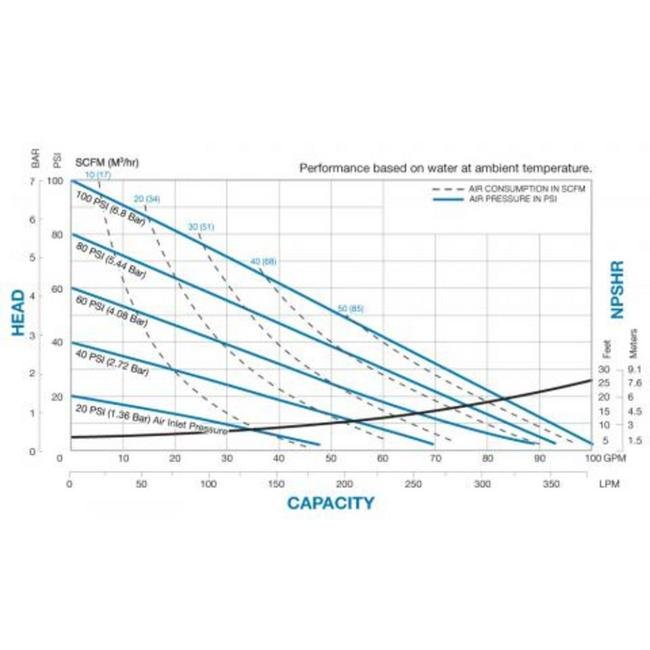

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
ECCN Code 2B350.i
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3KZKPAS000SP
Specifications Solids Handling
0.43 in | 11 mm
Specifications Weight
112 lbs | 50.80 kg
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
