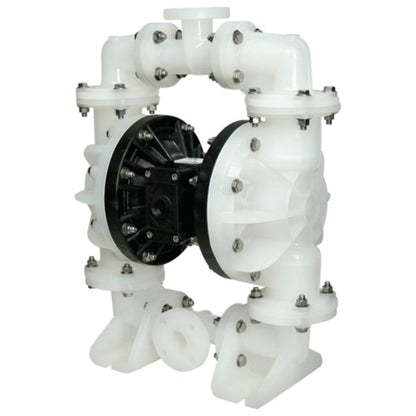

Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-ba1136
Reliable and efficient, the Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids in waste water applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids with intermittent/on-demand operation. Constructed with TPE and PTFE diaphragms and check valves, it is ideal for portable applications with low abrasive fluids and suspended solids. With a maximum flow rate of 100 gpm and solid handling capability of 0.43 inches, this pump ensures reliable and efficient performance in waste water applications.
Product Specifications

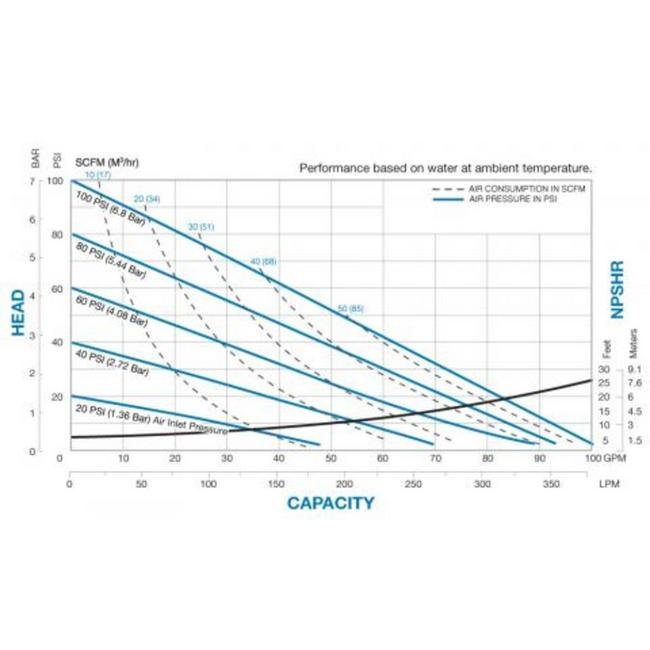

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3PBPPAS000SP
Specifications Solids Handling
0.43 in | 11 mm
Specifications Weight
82 lbs | 37.19 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
