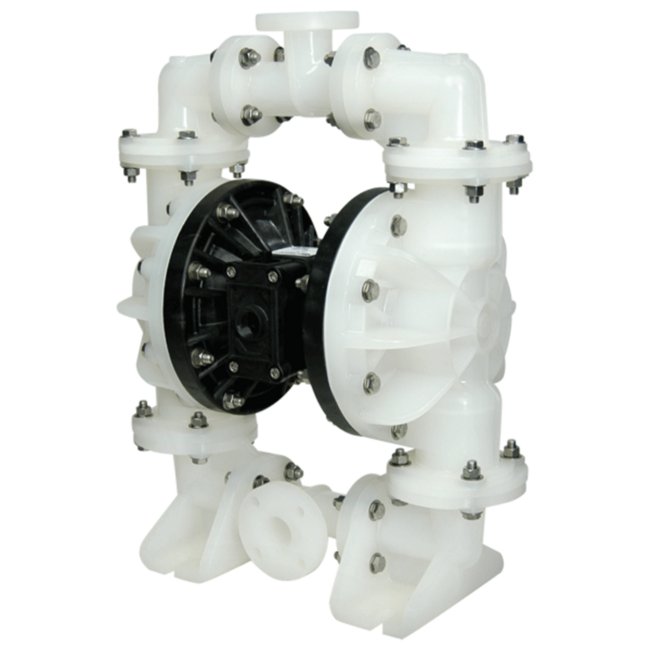

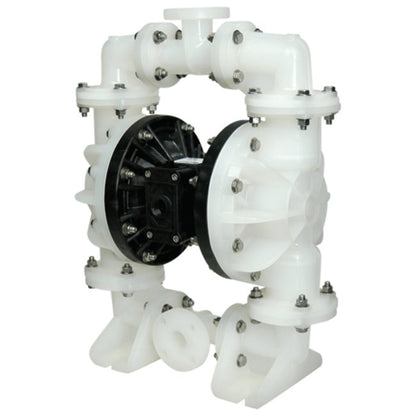

Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-3edb25
Sandpiper S15 Non-Metallic Ball Valve Pump for highly corrosive fluids, portable applications, and low abrasive fluids. Durable construction for reliable performance.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids with intermittent on-demand requirements, making it ideal for portable applications. Constructed with TPE and PTFE options, this pump is suitable for low abrasive fluids and suspended solids. With a 1.5 ANSI flange inlet size, 0.47-inch solids handling capacity, and a displacement of 0.43 gallons per stroke, it offers reliable performance. The pump's PVDF wetted material and 40% glass-filled polypropylene non-wetted material ensure durability in demanding environments. Maximize efficiency with optional accessories like wet end kits, air end kits, and pneumatic liquid level controls for a complete pumping solution.
Product Specifications

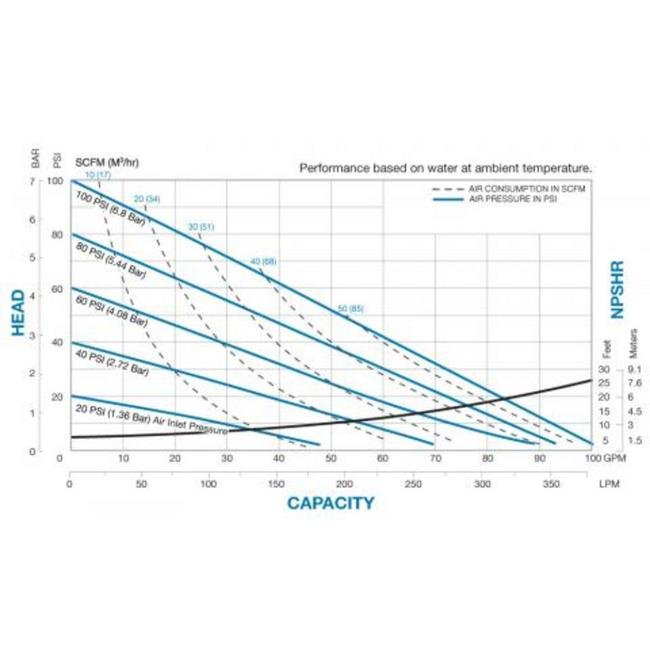

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3KNKPAS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
112 lbs | 50.80 kg
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
