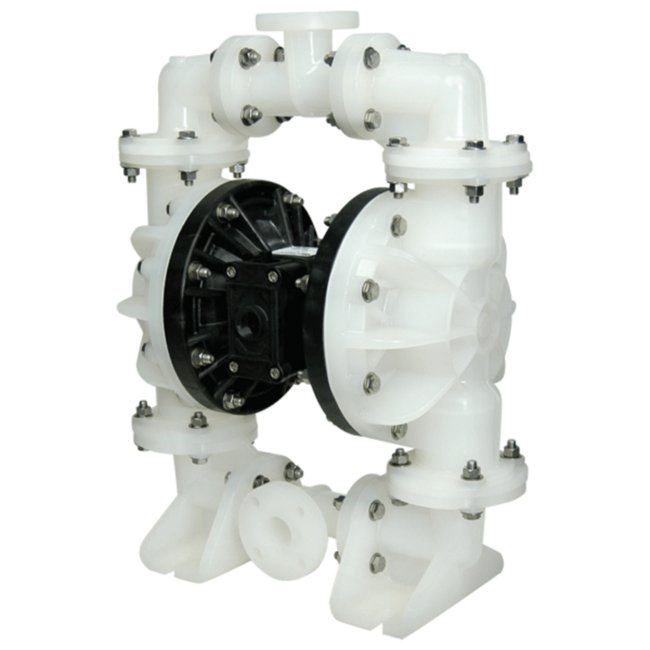

Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-1e6b94
Durable and reliable S15 non-metallic ball valve diaphragm pump for corrosive fluids handling. 1.5 ANSI inlet, 100 gpm max flow rate.
Regular price
$3,799.00
Regular price
Sale price
$3,799.00
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$3,799.00
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$3,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids, intermittent use, and low abrasive fluids with suspended solids. Constructed with TPE and PTFE materials, this pump ensures durability and reliability. It features 1.5 ANSI inlet size, PVDF wetted material, 100 gpm max flow rate, and efficient solids handling. Ideal for waste water applications and standard duty diaphragm pump requirements.
Product Specifications

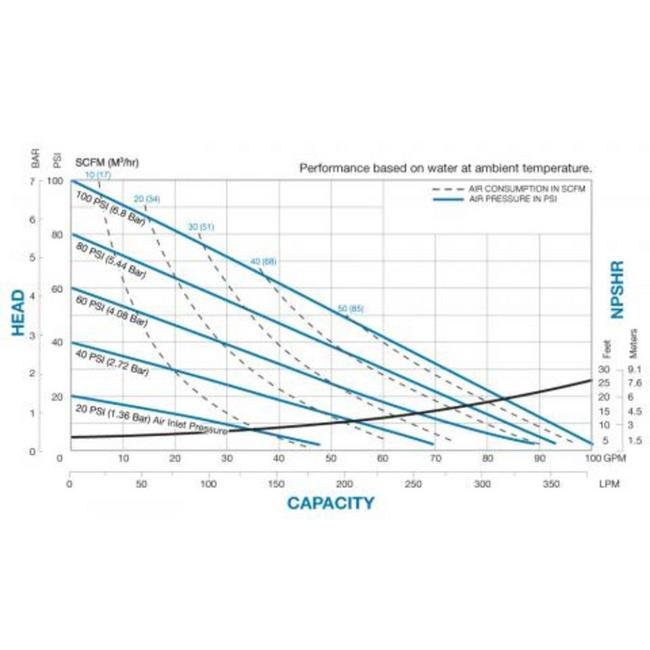

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
HS Code 84131900ECCN Code 2B350.i
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3KGKPAS000SP
Specifications Solids Handling
0.43 in | 11 mm
Specifications Weight
112 lbs | 50.80 kg
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
