The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for highly corrosive fluids, intermittent use, and low abrasive fluids with suspended solids. Featuring TPE and PTFE construction, it ensures optimal performance and longevity in challenging environments. With a 1.5 ANSI Flange inlet, 0.43 gal displacement per stroke, and a maximum flow rate of 100 gpm, this pump delivers reliable operation. Ideal for water, wastewater, sump, and utility applications, it offers exceptional durability and efficiency for standard duty diaphragm pump needs.
Product Specifications

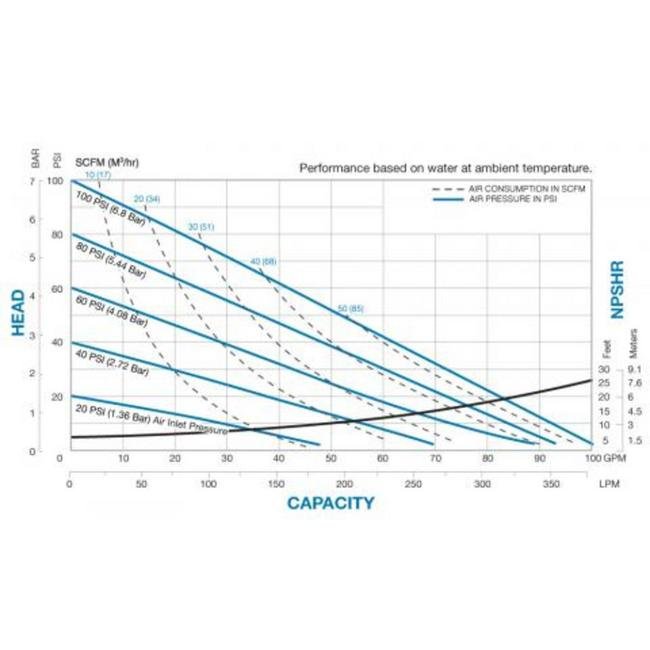

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3P1PPAS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
