Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-020120
Reliable and durable non-metallic ball valve diaphragm pump for corrosive fluids with suspended solids. Max flow rate of 100 gpm.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids with suspended solids. It features thermal plastic elastomers (TPE) and PTFE construction for durability and reliability. With a max flow rate of 100 gpm and solid handling capability of 0.43 inches, this pump is ideal for wastewater applications. Accessories like wet end kits and air end kits are available separately for maintenance.
Product Specifications

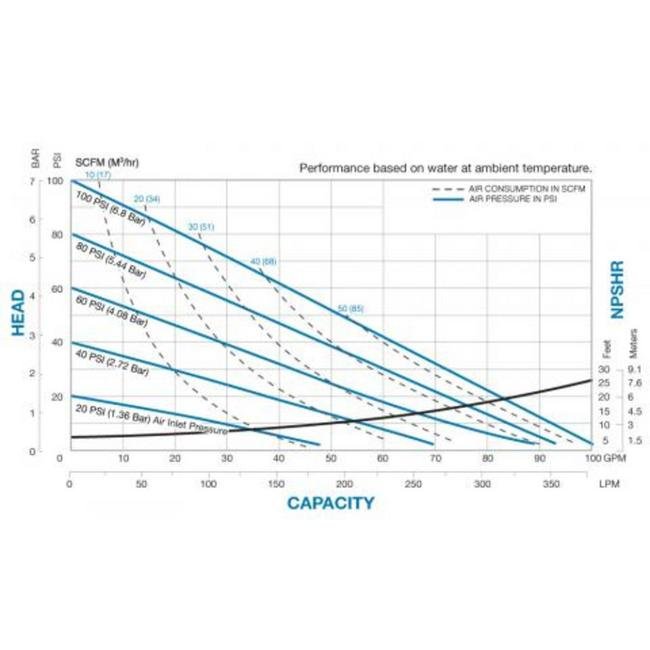

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3PMPPAS000SP
Specifications Solids Handling
0.43 in | 11 mm
Specifications Weight
82 lbs | 37.19 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
