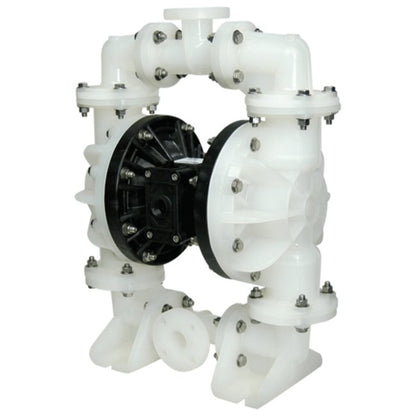

Sandpiper S15 Non-Metallic Top Discharge Standard Duty Diaphragm Pump
Sandpiper S15 Non-Metallic Top Discharge Standard Duty Diaphragm Pump
SKU:PRO-865b73
Reliable standard duty diaphragm pump with Polypropylene construction for waste water handling.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Sandpiper S15 Non-Metallic Top Discharge Standard Duty Diaphragm Pump
$1,599.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Non-Metallic Top Discharge Standard Duty Diaphragm Pump
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 Non-Metallic Top Discharge Standard Duty Diaphragm Pump is designed for intermittent/on-demand use with portable applications handling moderately abrasive fluids and suspended solids. Constructed with Polypropylene wetted materials for durability, it features a top discharge porting position and can handle solids up to 0.47 inches. This pump offers a displacement of 0.43 gallons per stroke, making it efficient and reliable for waste water applications.
Product Specifications

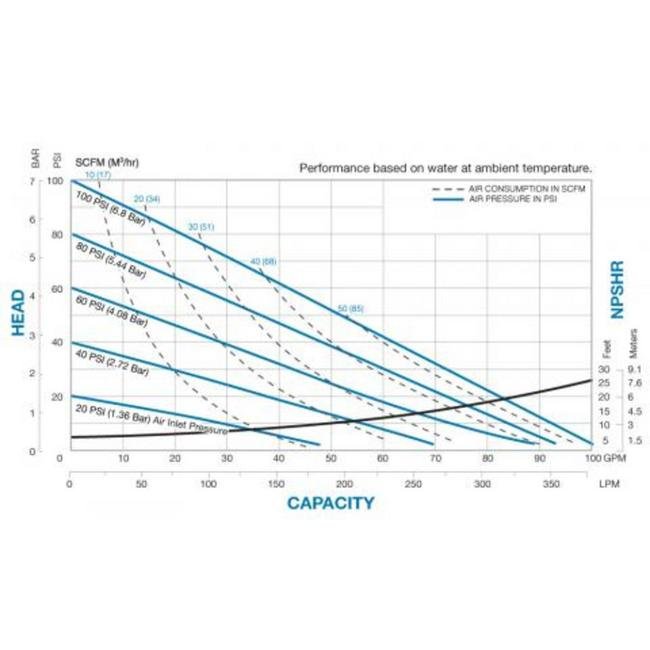

Curves 0
Dimensions 0
Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
HS Code 84131900
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI in | 38 ANSI mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
0.43 gpm | 25.80 gph | 1.63 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3PCPPAS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
84 lbs | 38.10 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
