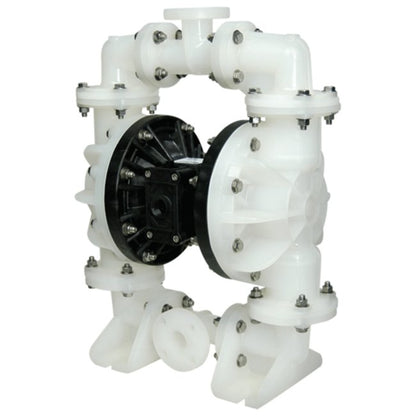

Sandpiper S15 PVDF Ball Valve Pump | 1.5" Top Discharge Diaphragm Pump
Sandpiper S15 PVDF Ball Valve Pump | 1.5" Top Discharge Diaphragm Pump
SKU:PRO-596b25
High-performance Sandpiper S15 PVDF Ball Valve Pump for waste water applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sandpiper S15 PVDF Ball Valve Pump | 1.5" Top Discharge Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 PVDF Ball Valve Pump | 1.5" Top Discharge Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 PVDF Ball Valve Pump is designed for versatile applications, handling moderately abrasive fluids and solids efficiently. With a top discharge porting position, this pump offers reliable performance and durability. Constructed with PVDF wetted materials and Polypropylene non-wetted components, it ensures corrosion resistance and long-term reliability. The 1.5" inlet size, 100 gpm max flow rate, and solid handling capabilities make it ideal for waste water applications. This pump is a superior choice for intermittent on-demand pumping needs.
Product Specifications
Curves 0

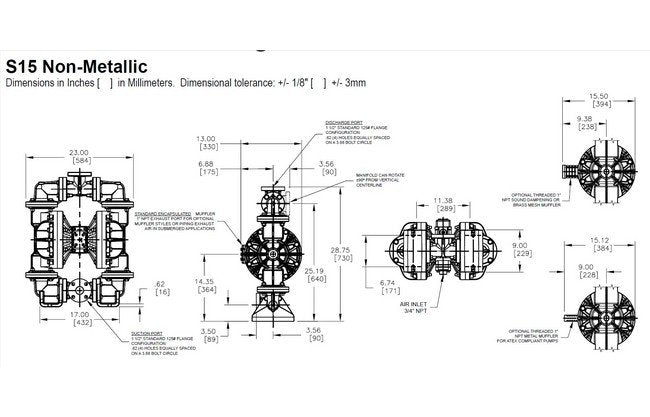

Dimensions 0
Dimensions
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3K2KPUS0P0SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
112 lbs | 50.80 kg | 50.80 Kilogram
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
