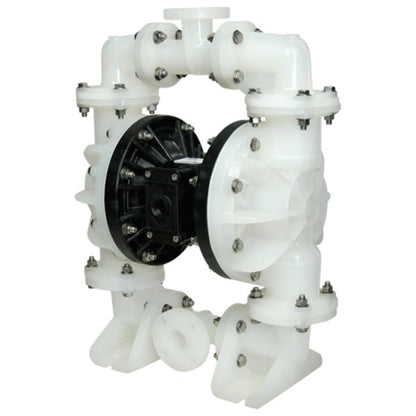

Sandpiper S15 Top Discharge Non-Metallic Ball Valve Pump
Sandpiper S15 Top Discharge Non-Metallic Ball Valve Pump
SKU:PRO-9dcdef
Reliable Sandpiper S15 Non-Metallic Ball Valve Pump for corrosive fluids, portable use, and low abrasive fluids with suspended solids.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sandpiper S15 Top Discharge Non-Metallic Ball Valve Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper S15 Top Discharge Non-Metallic Ball Valve Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S15 Top Discharge Non-Metallic Ball Valve Pump is designed for handling highly corrosive fluids, intermittent/on-demand usage, portable applications, and fluids with low abrasion and suspended solids. Constructed with TPE and PTFE options in diaphragms and check valves, this pump offers reliable performance. With a max flow rate of 100 gpm and a displacement per stroke of 0.43 gal, it delivers efficient operation for various applications. Compatible with recommended wet end and air end kits, this pump ensures consistent performance.
Product Specifications

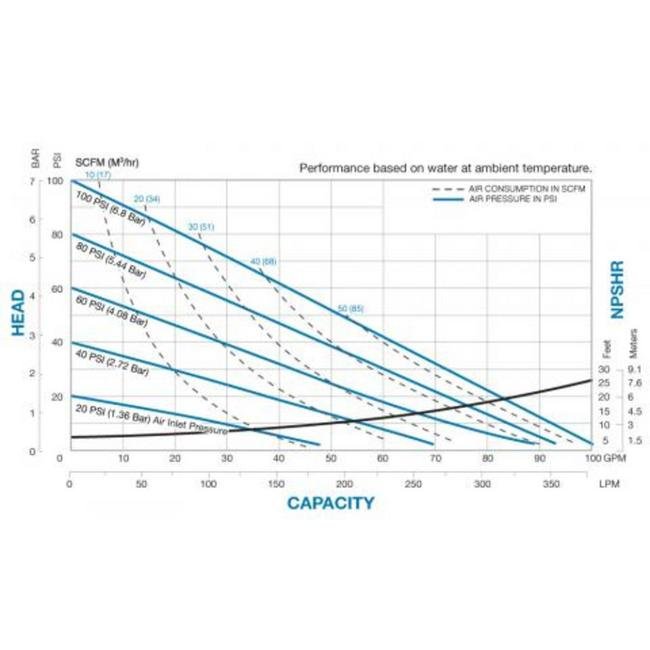

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3PGPPAS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
