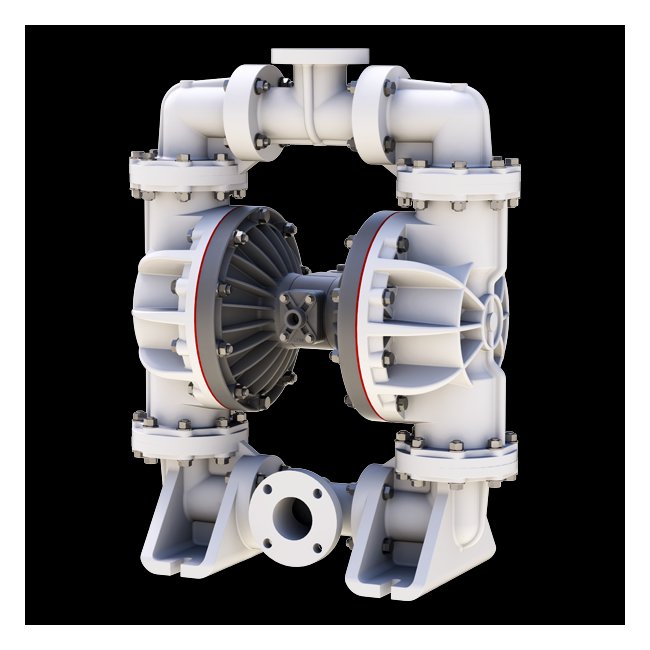

Sandpiper S1F Metallic Ball Valve Diaphragm Pump
Sandpiper S1F Metallic Ball Valve Diaphragm Pump
SKU:PRO-8b9035
Reliable air-powered diaphragm pump with ball check valves and 45 gpm flow rate. Ideal for wastewater handling.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Sandpiper S1F Metallic Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Claim Your Seller Account
Sandpiper S1F Metallic Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S1F Metallic Ball Valve Diaphragm Pump is a reliable air-powered double diaphragm pump designed for industrial applications. With a maximum flow rate of 45 gpm, this pump is suitable for handling wastewater and utility fluids with solids up to 25 inches. Constructed with aluminum, cast iron, and stainless steel components, it ensures durability and corrosion resistance. The pump features ball check valves and elastomers like Neoprene Bonded UniRupp®/PTFE for optimal performance. Ideal for standard duty applications, the Sandpiper S1F meets industry standards for quality and efficiency.
Product Specifications
Specifications Check Valve Seat
Aluminum | Carbon Steel | Stainless Steel
Specifications Check Valve Type
Ball
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1" BSPT Tapered | 1" NPT
Specifications Displacement Per Stroke
0.11 gal | 0.42 lit
Specifications Elastomers
Neoprene Bonded UniRupp®/PTFE | Santoprene® Bonded UniRupp®/PTFE
Specifications Intake Pipe Size Internal
1" BSPT Tapered | 1" NPT
Specifications Max Flow Rate
0 - 45 gpm | 0 - 170 lpm
Specifications Non Wetted Material
Cast Iron | Cast Iron with Stainless Steel Hardware | Painted Aluminum with PTFE Coated Hardware | Painted Aluminum with Stainless Steel Hardware
Specifications Porting Position
BSPT (Tapered) Threads
Specifications Pump Style
Standard
Specifications Solids Handling
25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Wetted Moc
Aluminum | Cast Iron | Stainless Steel
Category 6
Standard Duty Diaphragm Pumps
