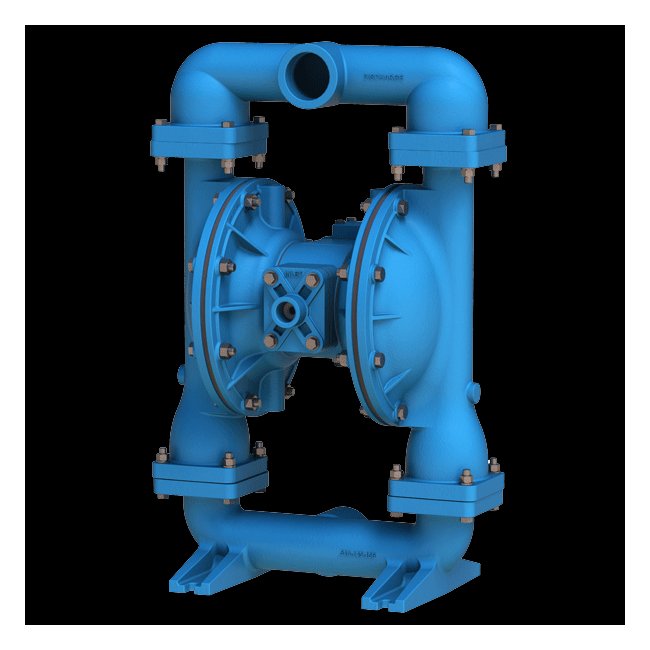

Sandpiper S20 Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S20 Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-16e930
Price: 1899.99 USD
Availability: OutOfStock

SKU:PRO-16e930

Reliable Sandpiper S20 Metallic Ball Valve Diaphragm Pump for water & waste management. Efficient & durable design for industrial use.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S20 Evolution Metallic Ball Valve Diaphragm Pump is a reliable and efficient air-powered double diaphragm pump designed for standard duty applications in waste water management. With a durable aluminum construction, Viton®/Viton® elastomers, and PTFE check valve seat, this pump ensures long-lasting performance. Featuring a maximum flow rate of 150 gpm, 2" BSPT/NPT pipe sizes, and the ability to handle solids up to 0.25 inches, it is ideal for industrial and institutional use.

Product Specifications

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Design Level

Specifications Discharge Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Displacement Per Stroke

0.42 gal | 1.59 lit

Specifications Elastomers

VitonÂ®/VitonÂ®

Specifications Intake Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Max Flow Rate

0 - 150 gpm | 0 - 567 lpm

Specifications Non Wetted Material

Painted Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Solids Handling

0.25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

53 lbs | 24 kg

Specifications Wetted Moc

Aluminum

Category 6

Standard Duty Diaphragm Pumps
