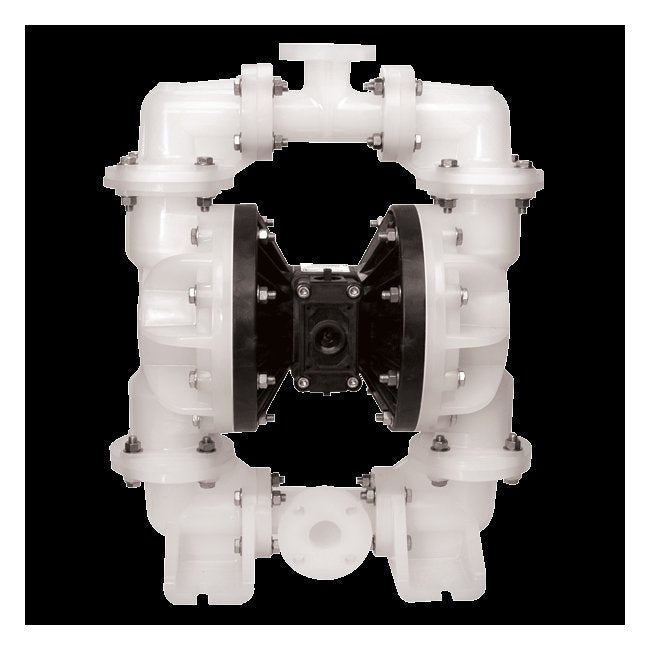

Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-1eb7dc
Reliable air-powered diaphragm pump for waste water handling with 0.66" solids handling, ideal for industrial use.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$2,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a reliable and efficient air-powered double diaphragm pump designed for demanding applications. With a durable polypropylene construction and Santoprene elastomers, this pump offers excellent resistance to abrasion and corrosion, making it ideal for handling waste water and other fluids with solids up to 0.66 inches. The ball check valve ensures smooth operation and consistent performance. Weighing 117 lbs, this pump provides a maximum flow rate of 150 gpm, meeting the standard duty requirements of institutional and industrial settings.
Product Specifications
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.36 gal | 1.36 lit
Specifications Elastomers
Santoprene/Santoprene
Specifications Inlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Max Flow Rate
0 - 150 gpm | 0 - 568 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum
Specifications Outlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Porting Position
ANSI Flange
Specifications Pump Style
Standard
Specifications Solids Handling
0.66 in | 17 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
117 lbs | 53 kg
Specifications Wetted Moc
Polypropylene
Category 6
Standard Duty Diaphragm Pumps
