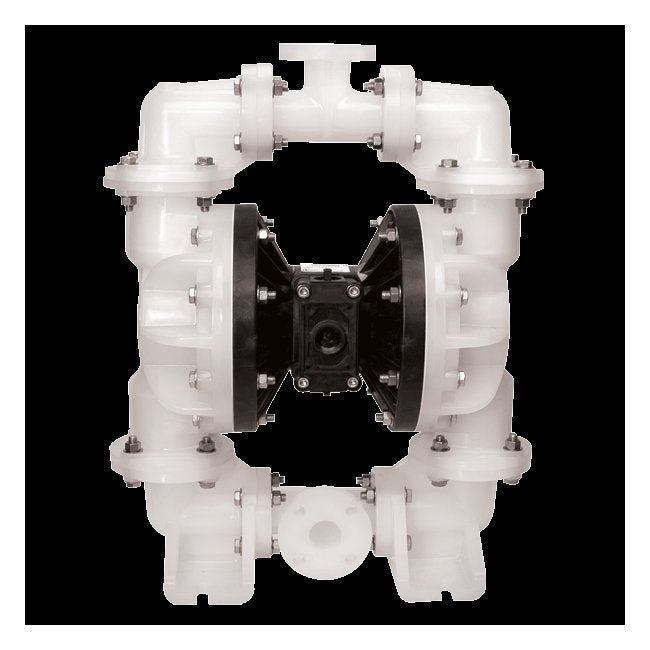

Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-e1aa9b
Price: 2799.99 USD
Availability: OutOfStock

SKU:PRO-e1aa9b

Reliable Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump for standard duty applications, featuring PVDF wetted components and PTFE elastomers.

$2,799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a reliable air-powered double diaphragm pump designed for standard duty applications. With a maximum flow rate of 150 gpm, it features PVDF wetted components, PTFE elastomers, and a ball check valve for efficient and durable performance. This pump is ideal for handling waste water with solids up to 0.66 inches, making it a robust solution for water, wastewater, sump, and utility systems.

Product Specifications

Specifications Check Valve Seat

PVDF

Specifications Check Valve Type

Ball

Specifications Design Level

Specifications Displacement Per Stroke

0.36 gal | 1.36 lit

Specifications Elastomers

PTFE - Santoprene Backup/PTFE

Specifications Inlet Size

2" ANSI Flange | PN10 50 mm DIN Flange

Specifications Max Flow Rate

0 - 150 gpm | 0 - 568 lpm

Specifications Non Wetted Material

Epoxy Coated Aluminum

Specifications Outlet Size

2" ANSI Flange | PN10 50 mm DIN Flange

Specifications Porting Position

ANSI Flange

Specifications Pump Style

Standard

Specifications Solids Handling

0.66 in | 17 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

151 lbs | 68 kg

Specifications Wetted Moc

PVDF
