Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-8b9035
Premium quality Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump for standard duty applications. Max flow rate: 150 gpm.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Claim Your Seller Account
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

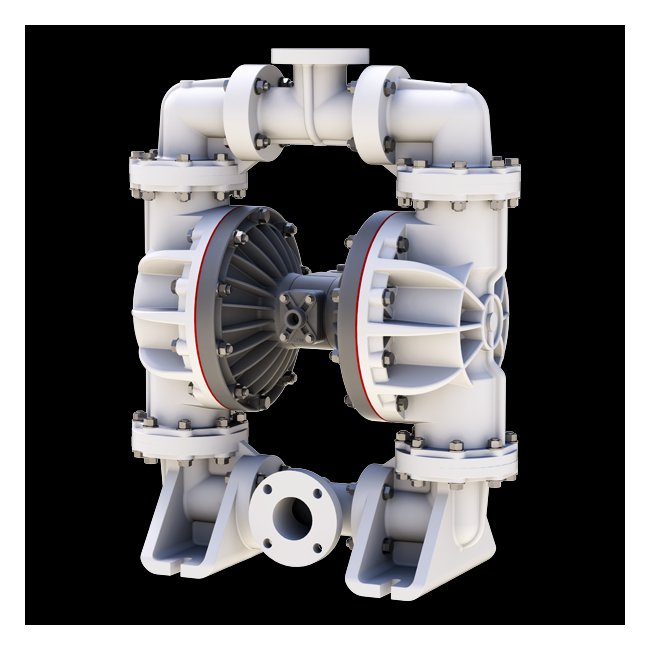

The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a reliable air-powered double diaphragm pump designed for standard duty applications. With a maximum flow rate of 150 gpm, it features a 2" ANSI Flange inlet and outlet, solids handling up to 0.66 inches, and a durable construction of polypropylene and PVDF materials. The pump is designed for easy maintenance and long-lasting performance, making it ideal for water, wastewater, sump, and utility applications.
Product Specifications
Specifications Check Valve Seat
Polypropylene | PVDF
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.36 gal | 1.36 lit
Specifications Elastomers
PTFE - Santoprene Backup/PTFE | PTFE Pumping, PTFE-Santoprene Backup Driver/PTFE | Santoprene Pumping, Santoprene Driver/Santoprene | Santoprene/Santoprene
Specifications Inlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Max Flow Rate
0 - 150 gpm | 0 - 568 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum with PTFE Coated Hardware | Painted Aluminum | Painted Aluminum with PTFE Coated Hardware | PTFE Coated Aluminum | PTFE Coated Aluminum with PTFE Coated Hardware
Specifications Outlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Porting Position
Bottom Dual Porting (ANSI) | DIN Flange | Dual Porting (ANSI) | Top Dual Porting (ANSI)
Specifications Pump Style
Containment Duty with Electronic Leak Detection (110V) | Containment Duty with Electronic Leak Detection (220V) | Containment Duty with Mechanical Leak Detection
Specifications Solids Handling
0.66 in | 17 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Wetted Moc
Polypropylene | PVDF
Category 6
Standard Duty Diaphragm Pumps
