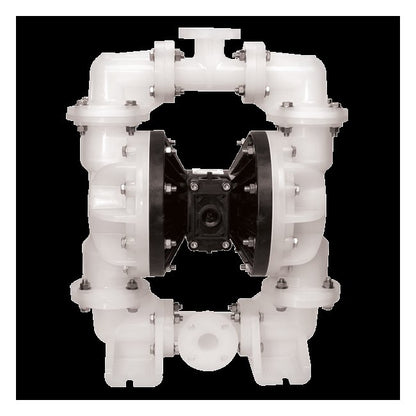

The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a high-performance air-powered double diaphragm pump designed for standard duty applications. With a robust construction featuring PVDF wetted material, PTFE elastomers, and containment duty design, this pump offers reliable and efficient operation. Its ball check valve type and ANSI Flange porting position ensure optimal performance and easy integration into existing systems. Ideal for handling waste water with up to 0.66-inch solids, this pump delivers a maximum flow rate of 150 gpm, making it the perfect choice for water, wastewater, sump, and utility applications.
Product Specifications
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.36 gal | 1.36 lit
Specifications Elastomers
PTFE Pumping, PTFE-Santoprene Backup Driver/PTFE
Specifications Inlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Max Flow Rate
0 - 150 gpm | 0 - 568 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum
Specifications Outlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Porting Position
ANSI Flange
Specifications Pump Style
Containment Duty with Visual Leak Detection
Specifications Solids Handling
0.66 in | 17 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
189 lbs | 86 kg
Specifications Wetted Moc
PVDF
Category 6
Standard Duty Diaphragm Pumps
