Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-39e60e
Reliable Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump for standard duty applications. Maximum flow rate: 150 gpm, solids handling: 0.66 in.
Regular price
$2,989.99
Regular price
Sale price
$2,989.99
Unit price
per
Initiate Order
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$2,989.99
Quantity: 1
Claim Your Seller Account
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$2,989.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

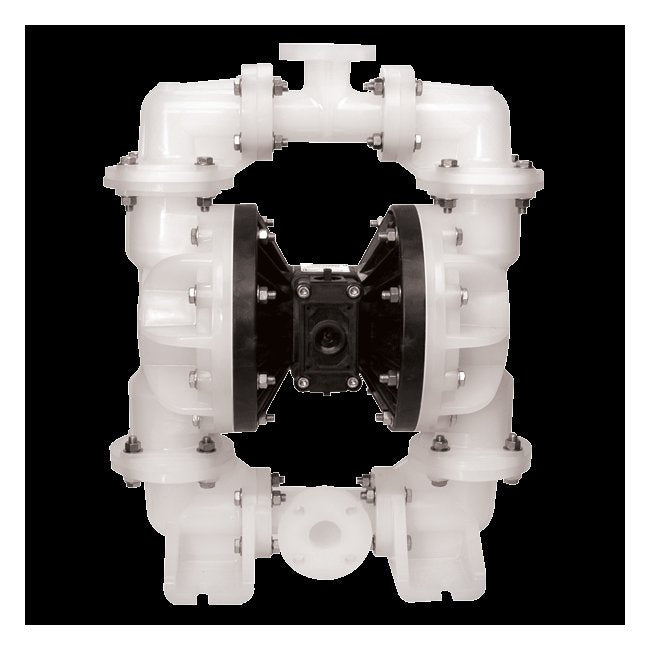

The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a reliable air-powered double diaphragm pump designed for standard duty applications. Constructed with PVDF wetted materials and Santoprene elastomers, it offers excellent chemical resistance and durability. Featuring a containment duty design with visual leak detection, it ensures safe and efficient operation. With a maximum flow rate of 150 gpm and solids handling capacity of 0.66 inches, this pump meets the stringent requirements of waste water applications.
Product Specifications
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.36 gal | 1.36 lit
Specifications Elastomers
Santoprene Pumping, Santoprene Driver/Santoprene
Specifications Inlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Max Flow Rate
0 - 150 gpm | 0 - 568 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum
Specifications Outlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Porting Position
ANSI Flange
Specifications Pump Style
Containment Duty with Visual Leak Detection
Specifications Solids Handling
0.66 in | 17 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
189 lbs | 86 kg
Specifications Wetted Moc
PVDF
Category 6
Standard Duty Diaphragm Pumps
