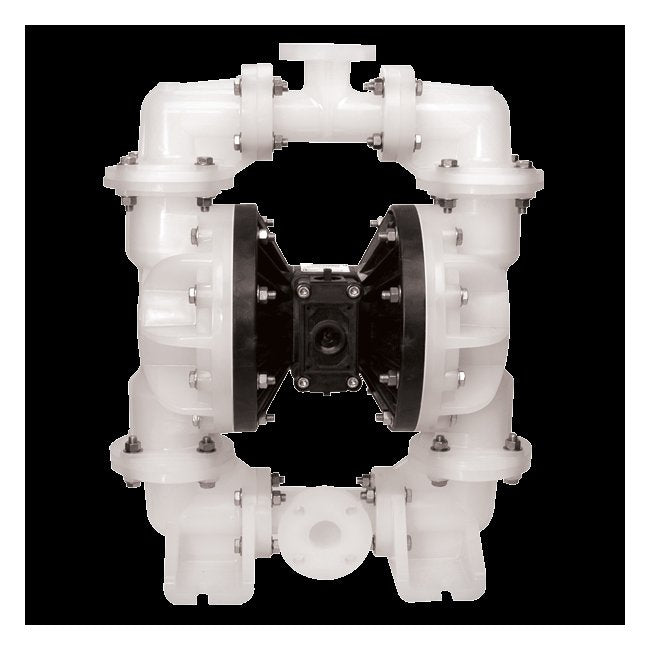

Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-9f5457
Rugged and reliable non-metallic diaphragm pump for standard duty applications, corrosion-resistant with 150 gpm max flow rate.
Regular price
$2,050.00
Regular price
Sale price
$2,050.00
Unit price
per
Initiate Order
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$2,050.00
Quantity: 1
Claim Your Seller Account
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$2,050.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a rugged and reliable air-powered double diaphragm pump designed for standard duty applications. With a Polypropylene wetted M.O.C and PTFE elastomers, it ensures corrosion resistance and durability. Featuring a 2" ANSI Flange inlet and outlet size, this pump has a maximum flow rate of 150 gpm, making it ideal for waste water handling. The pump's containment duty design with visual leak detection provides added safety assurance.
Product Specifications
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.36 gal | 1.36 lit
Specifications Elastomers
PTFE Pumping, PTFE-Santoprene Backup Driver/PTFE
Specifications Inlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Max Flow Rate
0 - 150 gpm | 0 - 568 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum
Specifications Outlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Porting Position
ANSI Flange
Specifications Pump Style
Containment Duty with Visual Leak Detection
Specifications Solids Handling
0.66 in | 17 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
148 lbs | 67 kg
Specifications Wetted Moc
Polypropylene
Category 6
Standard Duty Diaphragm Pumps
