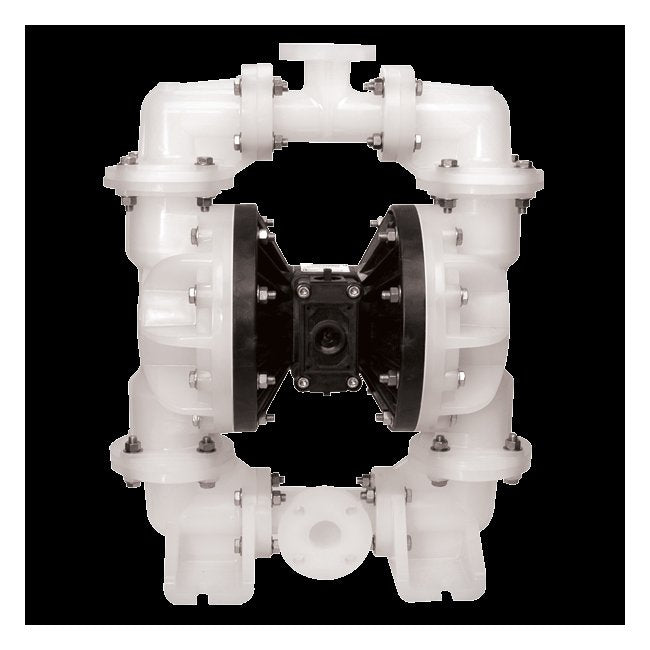

Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-8c62c3
Reliable Sandpiper S20 Non-Metallic Diaphragm Pump for water and wastewater applications. Chemical-resistant and efficient design.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a reliable air-powered double diaphragm pump designed for standard duty applications in water, wastewater, and utility systems. With a Polypropylene construction and PTFE elastomers, it offers exceptional resistance to chemicals and corrosion. Featuring a 2" ANSI Flange inlet and outlet, a maximum flow rate of 150 gpm, and a solids handling capability of 0.66 inches, this pump ensures efficient and precise fluid transfer. Compliance with federal procurement standards and industry-specific certifications makes it a trusted choice for institutional buyers seeking quality and reliability.
Product Specifications
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.36 gal | 1.36 lit
Specifications Elastomers
PTFE - Santoprene Backup/PTFE
Specifications Inlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Max Flow Rate
0 - 150 gpm | 0 - 568 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum
Specifications Outlet Size
2" ANSI Flange | PN10 50 mm DIN Flange
Specifications Porting Position
ANSI Flange
Specifications Pump Style
Standard
Specifications Solids Handling
0.66 in | 17 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
151 lbs | 68 kg
Specifications Wetted Moc
Polypropylene
Category 6
Standard Duty Diaphragm Pumps
