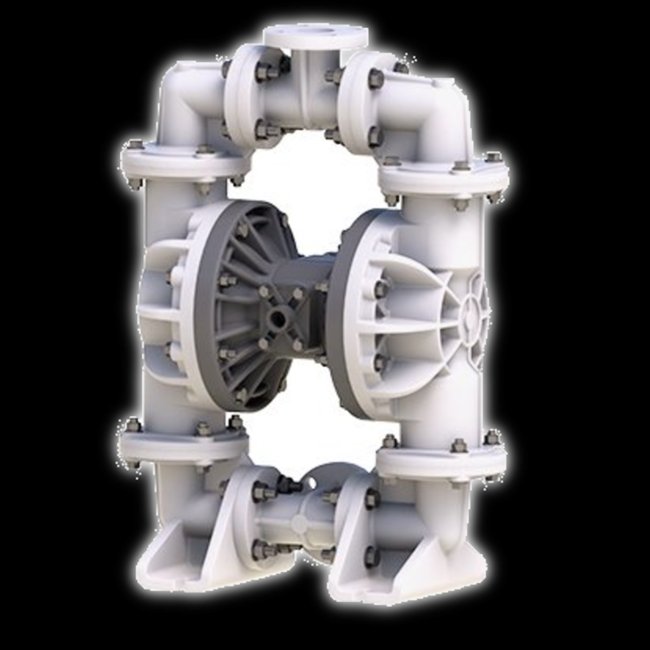

Sandpiper S20 Poly Diaphragm Pump, PTFE/Santo, 2"

Name: Sandpiper S20 Poly Diaphragm Pump, PTFE/Santo, 2"
Brand: Springer Pumps, LLC
SKU: PRO-2a84d8
Price: 1899.99 USD
Availability: OutOfStock

SKU:PRO-2a84d8

Get reliable performance with the Sandpiper S20 Poly Diaphragm Pump. Ideal for chemical and bulk transfer, it features a durable polypropylene construction and easy serviceability.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S20 Non-Metallic Ball Valve Diaphragm Pump is a versatile solution designed for chemical transfer, bulk transfer, and various process applications. With a corrosion-resistant polypropylene build and a one-piece Synthesis PTFE diaphragm, it offers durability and reliability. The ESADS+ air distribution system allows quick and easy servicing without pump removal, enhancing productivity. This pump meets stringent industry standards for waste water applications.

Product Specifications

Curves 0

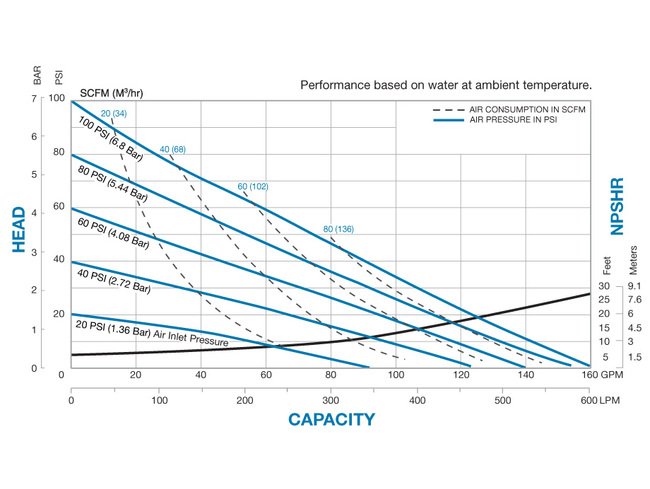

Performance Curves

Dimensions 0

Dimensions

Specifications Check Valve Type

Ball

Specifications Elastomers

PTFE

Specifications Height

32 in | 819.15 mm

Specifications Inlet Size

2 ANSI/DIN in | 51 ANSI/DIN mm | 2" ANSI/DIN

Specifications Length

24 in | 0.6048 m | 604.77 mm

Specifications Max Flow Rate

150 gpm | 9000.00 gph | 567.81 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

2" ANSI/DIN

Specifications Sku

WRS20B3P3PPUV000SP

Specifications Solids Handling

0.47 in | 12 mm

Specifications Weight

95 lbs | 43.09 kg | 43.09 Kilogram

Specifications Wetted Moc

Polypropylene

Specifications Width

13 in | 0.3302 m | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps
