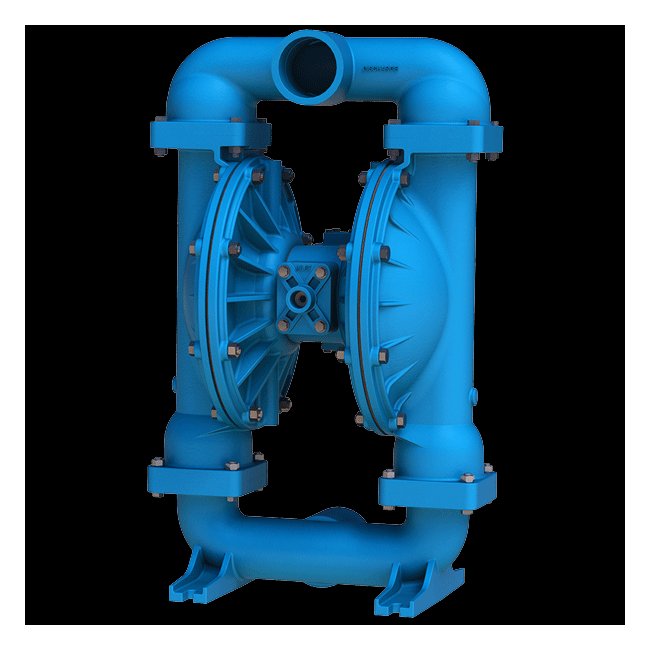

Sandpiper S30 Metallic Ball Valve Diaphragm Pump

Name: Sandpiper S30 Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-ddf96c
Price: 2899.99 USD
Availability: OutOfStock

SKU:PRO-ddf96c

Reliable Sandpiper S30 Metallic Ball Valve Diaphragm Pump for waste water applications, featuring stainless steel construction and a max flow rate of 235 gpm.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sandpiper S30 Evolution Metallic Ball Valve Diaphragm Pump is a top-tier Air Powered Double Diaphragm Pump, ideal for waste water applications. With its 3" BSPT/NPT intake and discharge pipe sizes, stainless steel construction, Viton elastomers, and PTFE check valve seat, this pump ensures reliable performance, handling solids up to 0.25 inches per stroke. Weighing 194 lbs, this pump offers a max flow rate of 235 gpm, making it a robust solution for standard duty diaphragm pump needs.

Product Specifications

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Design Level

Specifications Discharge Pipe Size Internal

3" BSPT Tapered | 3" NPT

Specifications Displacement Per Stroke

0.94 gal | 3.56 lit

Specifications Elastomers

VitonÂ®/VitonÂ®

Specifications Intake Pipe Size Internal

3" BSPT Tapered | 3" NPT

Specifications Max Flow Rate

0 - 235 gpm | 0 - 889 lpm

Specifications Non Wetted Material

Painted Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Solids Handling

0.25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

194 lbs | 87 kg

Specifications Wetted Moc

Stainless Steel

Category 6

Standard Duty Diaphragm Pumps
