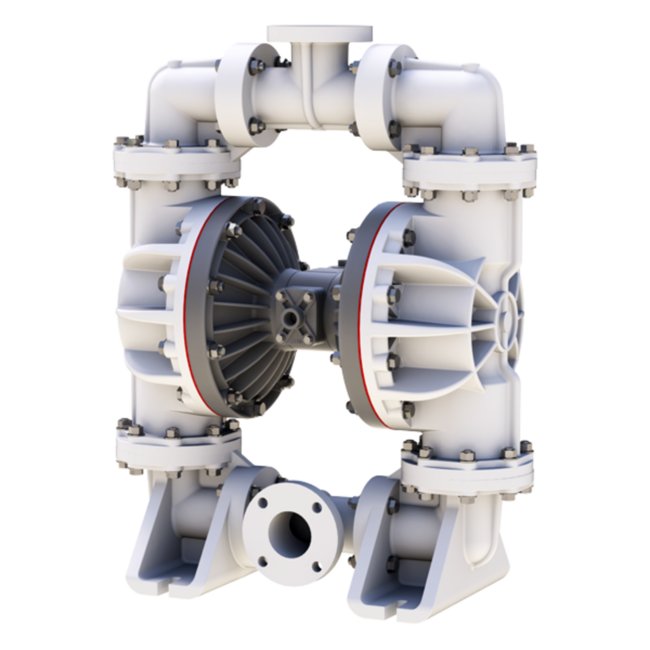

Sandpiper S30 Non-Metallic Ball Valve Diaphragm Pump
Sandpiper S30 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-5b611d
Reliable Sandpiper S30 Non-Metallic Ball Valve Diaphragm Pump for bulk chemical transfer applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Sandpiper S30 Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Claim Your Seller Account
Sandpiper S30 Non-Metallic Ball Valve Diaphragm Pump
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sandpiper S30 Non-Metallic Ball Valve Diaphragm Pump is a reliable solution designed for bulk chemical transfer applications. With an inlet size of 3 ANSI in, handling solids up to 0.75 inches, and a displacement of 1 gallon per stroke, this pump delivers consistent performance. Constructed with PVDF-Kynar wetted material and check valve seat, along with non-wetted material Poly with PTFE Coated HDW, it ensures durability and chemical resistance. This pump offers a max flow rate of 1.0 gpm, making it ideal for waste water applications. Contact us for Wet End Kit and Air End Kit information to further optimize its functionality.
Product Specifications
Curves 0

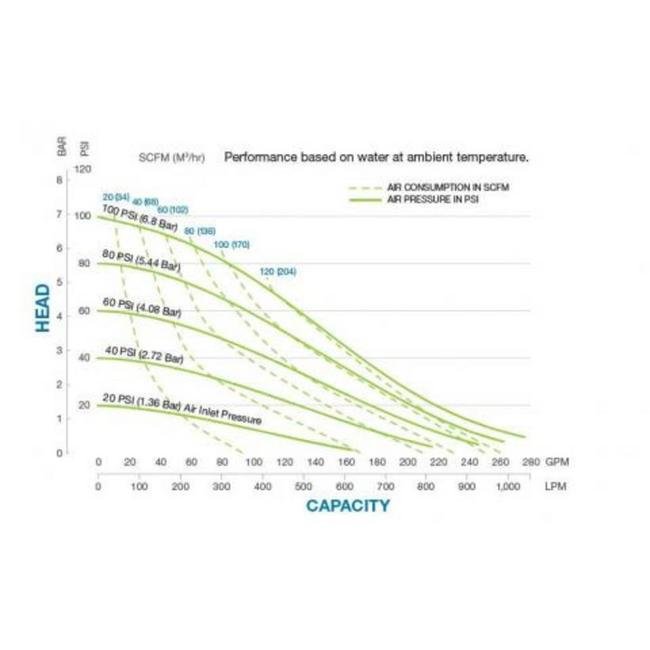

Performance Curves
Specifications Check Valve Seat
PVDF - Kynar
Specifications Customs Code
HS Code 84131900
Specifications Displacement Per Stroke
1 gal | 3.79 lit
Specifications Height
3.39 ft | 41 in | 1.0328 m | 1032.76 mm
Specifications Inlet Size
3 ANSI in | 76 ANSI mm
Specifications Length
32 in | 820.67 mm
Specifications Max Flow Rate
1.0 gpm | 60.00 gph | 3.79 lpm
Specifications Non Wetted Material
Poly with PTFE Coated HDW
Specifications Sku
WRS30B3K2K1AS000SP
Specifications Solids Handling
0.75 in | 19 mm
Specifications Weight
350 lbs | 158.76 kg
Specifications Wetted Moc
PVDF - Kynar
Specifications Width
16 in | 411.23 mm
Category 6
Standard Duty Diaphragm Pumps
